12.1 inch Full IP66 IP67 1500nits Embedded PCAP Touch Panel PC

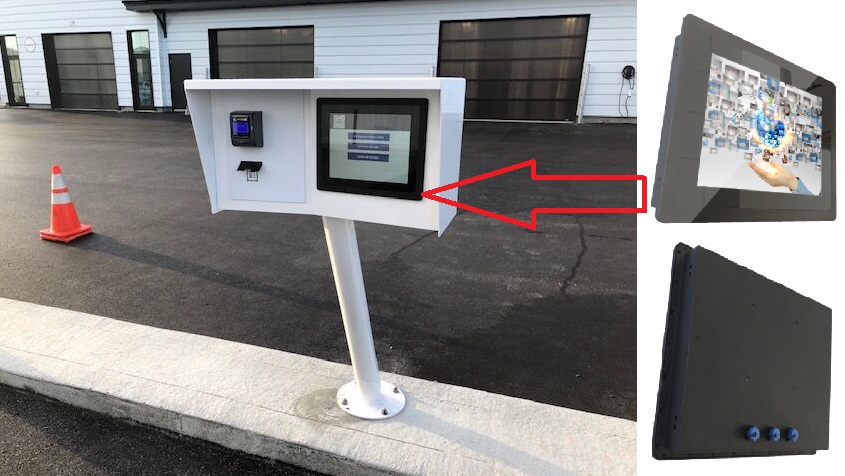

The 12.1-inch full IP67 /IP66 True Flat Touch PCT/PCAP & 5 Wires reisitve rugged touch panel PC designed for tough applications, made by full 6 sides aluminum chassis and waterproof I/O ports are fitted with M12 waterproof connectors for the PCs LAN, RS232(optional), USB 2.0, Audio and DC9-36V ports. Except for full IP67/IP66 waterproof function, the true flat touch panel PCs equipped with multi touch panels, bringing customers better user experience. It features fanless cooling system, ultra-low power consumption, and sunlight readable LCD, making it ideal for outdoor public kiosk applications. It can also be used to view sensor data or control machines on manufacturing and production lines that may be exposed to liquid. This rugged touch panel computer provides great value at a lower cost than other waterproof PCs and has long lifecycle support.



BENEFITS
●12.1” High Resolution 1024x768 LCD, 1500nits
●ARM Based RK3288, 2G RAM, 8G Flash; Intel J1900, Intel i3/i5/i7 Optional
●Rugged Aluminum Chassis; Stainless Steel Chassis Optional
●VESA Mounting, Embedded/ Panel Mounting via Clamps
●P-CAP Multi-Touch Touchscreen/5-Wires Resistive Touchscreen
●Full IP66/IP67 and Sealed with Anti-Corrosive Rubber to Providing 360 Degree Protection
●M12 Waterproof Connectors Default to 1 x RJ45, 2 x USB 2.0(USB OTG included), 1 x Audio, 1 x DC9-36V
●MIL-STD-810F/G Compliant for Vibration and Shock




For more products information, technical questions, samples request, please feel free to send inquiry to sales@itd-tech.com.
