Pass Management Module of Temperature Measurement and Face Recognition Manual

Pass Management Module of Temperature Measurement & Face Recognition Manual
ITD new product-Pass Management Vertical Module of Temperature Measurement & Face Recognition uses Rockchip RK3288/RK3399/Qualcomm MSM8953 high-performance hardware platform, equipped with industrial-grade binocular camera, live face recognition technology and infrared thermal imaging module to support face-with-mask identity. It supports 1:1 and 1:N face comparison and retrieval, face-with-mas recognition and human temperature detection. It supports automatic alarm for body temperature abnormality. It also supports expansion of various peripherals such as ID card readers, fingerprint readers, etc., which can be applied to gate passages and attendance system to achieve safe and efficient access control for personnel.

- 8 inch IPS at 1280 × 800, 350nits, full viewing angles LCD Display.

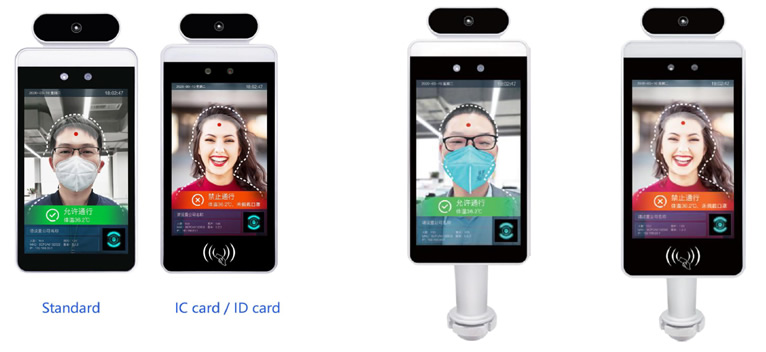

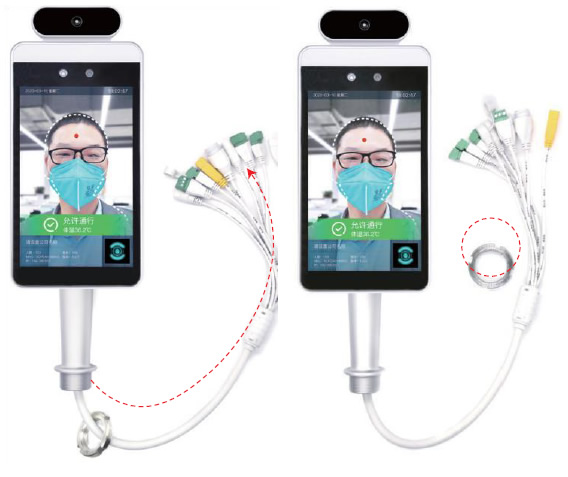

- Flexible mounting options: Wall-Mounted, Desktop Stand.
- Multi languages supported: Chinese Simplified, Chinese Traditional, English, Italian, Polish, German, Russian, Thai, Spanish, French, Arabic, Korean, Vietnamese
- Supports 30,000 face database. The 1:1 comparison recognition rate is more than 99.79%, the 1:N comparison recognition rate us more than 96.7%@0.1% misrecognition rate, and the live detection accuracy rate is 98.3%@1% mis-rejection rate. Face recognition pass speed is less than 1 second.
- Supports accurate face recognition and comparison while wearing a mask.
- Using industrial-grade binocular wide dynamic camera, night infrared and LED dual photo flood lamp.
- Supports processors with powerful performance: Rockchip RK3288 Quad-Core, RK3399 Octa Core and Qualcomm MSM8953 Octa-Core processors.
- Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The max. distance at which body temperature can be measured is 1 meter. The measure error is ±0.5℃.
- It only takes a few second for detection, and supports automatic alarm for body temperature abnormality.
- Attendance temperature measurement data is exported in real time.

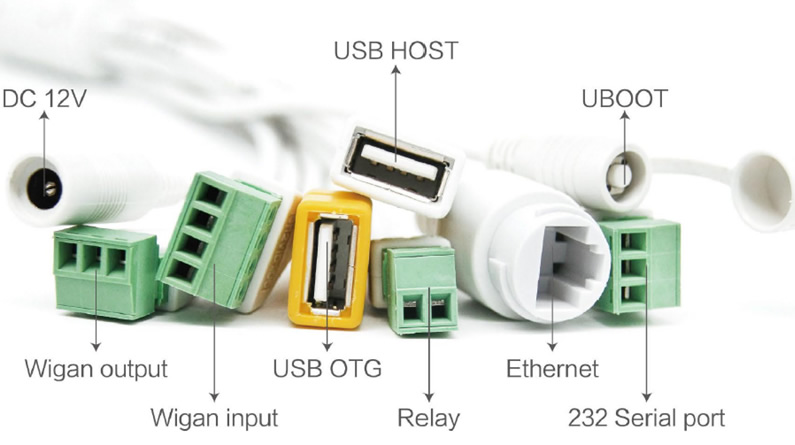

- Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.
- The documentation is complete and supports secondary development.
- Supports system level, APP offline level, APP+ background network level multiple API docking.

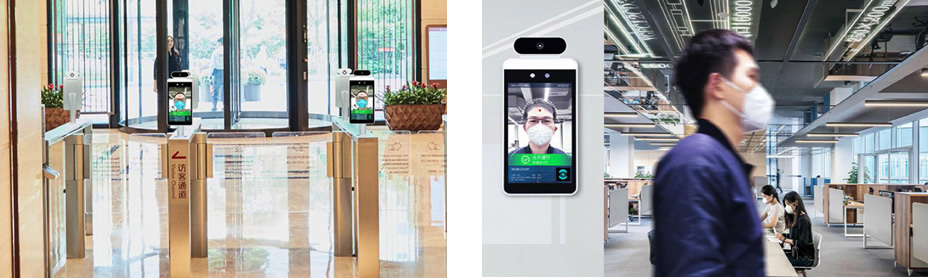

It can be used with access gates, attendance for communitis, office buildings, schools, hotels, scenic spots, transportation hubs and other public service places.

If you have interest or need technical information or sample request, please don’t hesitate to contact us.
