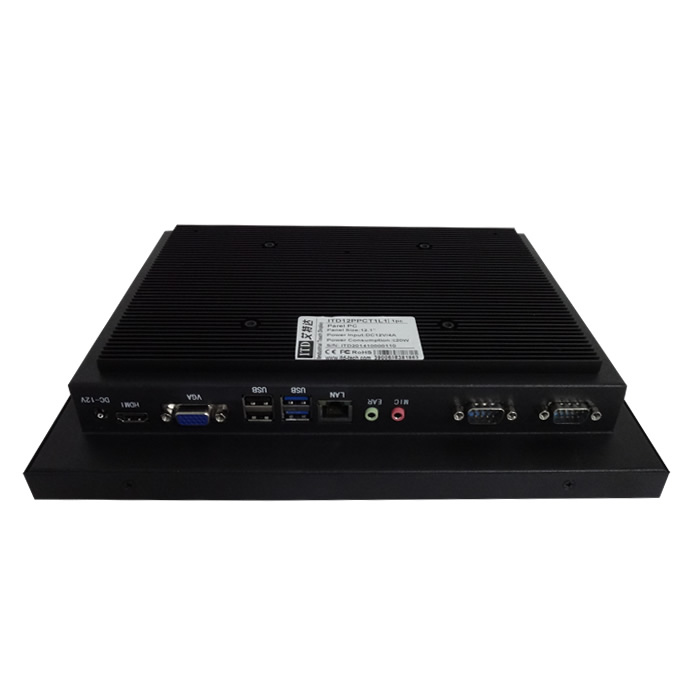

Chassis Panel PC

Model Name

ITD10PPCG1L**

IP Rating

IP65 Front Panel Optional

PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1×HDMI

1×VGA, 1×HDMI

1×VGA, 1×HDMI

1×USB 2.0

2×USB 2.0, 2×USB3.0

2×USB 2.0, 2×USB3.0

1×mini-SD slot

1×COM(RS232/422/485)

1×COM(RS232/422/485)

1×LAN

1×LAN

1×LAN

1×Audio Out

1×Audio Out, 1×MIC In

1×Audio Out, 1×MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

LCD Panel

Screen Diagonal (Inch)

10.4”

Display Active Screen Size (cm)

210.4(H)×157.8(V)

Aspect Ratio

4:3

Physical Resolution

800×600 or 1024×768

Maximum Resolution Supported

1920×1080

Colors

16.2M

Brightness (cd/m2)

300

Contrast Ratio

600:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

29.5W

Order Information

10.4”ChassisPanel PC with Resistive Touch, J1900

ITD10PPCT1LJ1

10.4”Chassis Panel PC with PCAP Touch, J1900

ITD10PPCT5LJ1

10.4”Chassis Panel PC with IR Touch, J1900

ITD10PPCT2LJ1

10.4”Chassis Panel PC with Tempered Glass, J1900

ITD10PPCG1LJ1

10.4”Chassis Panel PC with Resistive Touch, i5

ITD10PPCT1LI5

10.4”Chassis Panel PC with PCAP Touch, i5

ITD10PPCT5LI5

10.4”Chassis Panel PC with IR Touch, i5

ITD10PPCT2LJ1

10.4”Chassis Panel PC with Tempered Glass, i5

ITD10PPCG1LI5
