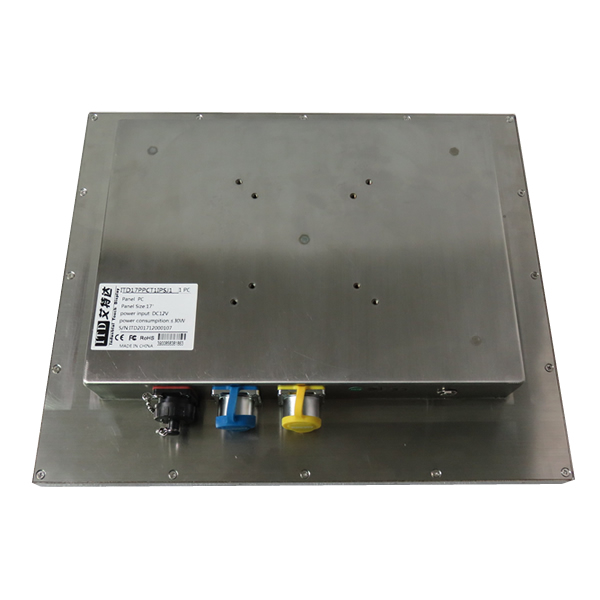

12.1 inch High Brightness Full IP65/IP66 TouchscreenPanel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like resistive and PCAP
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD industrial full IP65 sunlight readable touchpanel PCs are constructed withcompletely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITDsunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities whichare ideal for harsh environments of process manufacturing, discrete manufacturing, industrialautomation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.



<TD style="BORDER-RIGHT: medium none; BACKGROUND: #f2f2f2; BORDER-BOTTOM: medium none; PADDING-BOTTOM: 0cm; PADD,I</body>

Next£º15 inch High Brightness Full IP65/IP66 Touchscreen Panel PC
Previous£º10.4 inch High Brightness Full IP65/IP66 TouchscreenPanel PC


High Brightness Full IP65 /IP66Panel PC

Model Name

ITD12PPCG1IPHB**

IP Rating

IP65/IP66(IP67 optional)


PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

Default IP65 Connectors:  1¡ÁUSB 2.0, 1¡ÁLAN, 1¡ÁDC 2.0


LCD Panel

Screen Diagonal (Inch/cm)

12.1¡±

Display Active Screen Size (mm)

246.0(H) ¡Á184.5(V)

Aspect Ratio

4:3

Physical Resolution

800¡Á600(1024¡Á768optional)

Maximum Resolution Supported

1920¡Á080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

500:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC12V

Power Consumption

18W


Order Information

12.1¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900

ITD12PPCT1IPHBSJ1

12.1¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900

ITD12PPCT5IPHBSJ1

12.1¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900

ITD12PPCG1IPHBSJ1

12.1¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3

ITD12PPCT1IPHBSI3

12.1¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3

ITD12PPCT5IPHBSI3

12.1¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3

ITD12PPCG1IPHBSI3

12.1¡±1000nits Full IP65/IP66 Aluminum Alloy Panel PC with Resistive Touch, J1900

ITD12PPCT1IPHBAJ1

12.1¡±1000nits Full IP65/IP66 Aluminum Alloy Panel PC with PCAP Touch, J1900

ITD12PPCT5IPHBAJ1
