12.1 inch PCAP Touch Panel Mounted PC
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-Edge to edge design with true flat surface, easy to clean

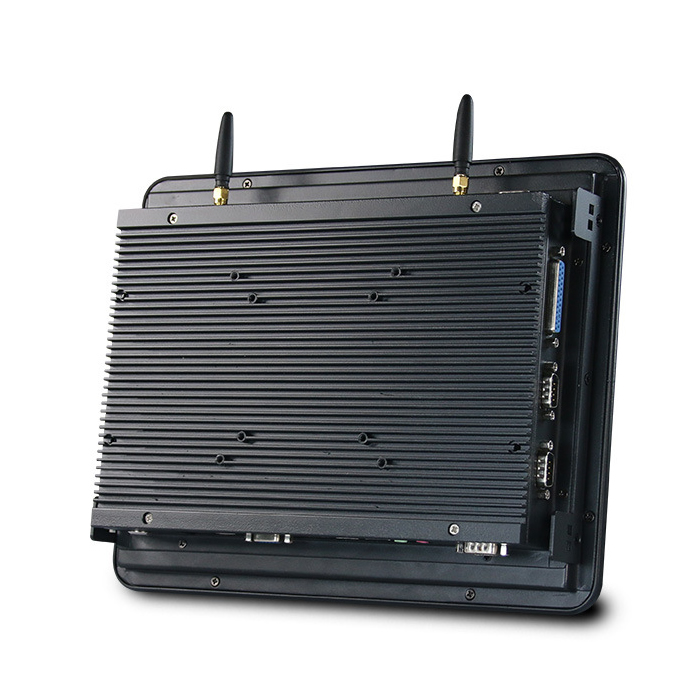

-Excellent heat dissipation with aluminum fin, fan-less design
-All robust aluminum construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with NEMA 4/ IP65 front panel
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial PCAP touch panel mounted PCs provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminumenclosuresand highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments.The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean.TheIndustrial PCAP touchpanel PCs come with industrial LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilitiesare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.




PCAP Touch Panel Mounted PC

Model Name

ITD12PPCT5Q**

IP Rating

IP65 Front Panel


PC Systems Options



X86 Windows Based

CPU: Intel Celeron J1900

Chipset: Intel HD Graphics, Support 1080p

Memory: 2GB(Max. 8GB)

HDD/SSD:500G/64G

1¡ÁVGA, 1¡ÁHDMI

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: USB, COM, Mini-PCIe

X86 Windows Based

CPU: Intel Core i3/i5/i7

Chipset: Intel HD Graphics, Support 1080p

Memory: 2GB(Max. 16GB)

HDD/SSD:500G/64G

1¡ÁVGA, 1¡ÁHDMI

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

12.1¡±

Display Active Screen Size (cm)

246.0(H)¡Á184.5(V)

Aspect Ratio

4:3

Physical Resolution

800¡Á600 or 1024¡Á768

Maximum Resolution Supported

1920¡Á1080

Colors

16.2M

Brightness (cd/m2)

300nits

Contrast Ratio

700:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel



Touch Options

Projected Capacitive Touch Panel

Touch Drivers

Windows 7/8/10, Linux, Android, Mac


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

24W


Order Information



12.1¡±PCAP Touch Panel Mounted PC with J1900

ITD12PPCT5QJ1

12.1¡±PCAP Touch Panel Mounted PC with i3

ITD12PPCT5QI3

12.1¡±PCAP Touch Panel Mounted PC with i5

ITD12PPCT5QI5

12.1¡±PCAP Touch Panel Mounted PC with i7

ITD12PPCT5QI5
