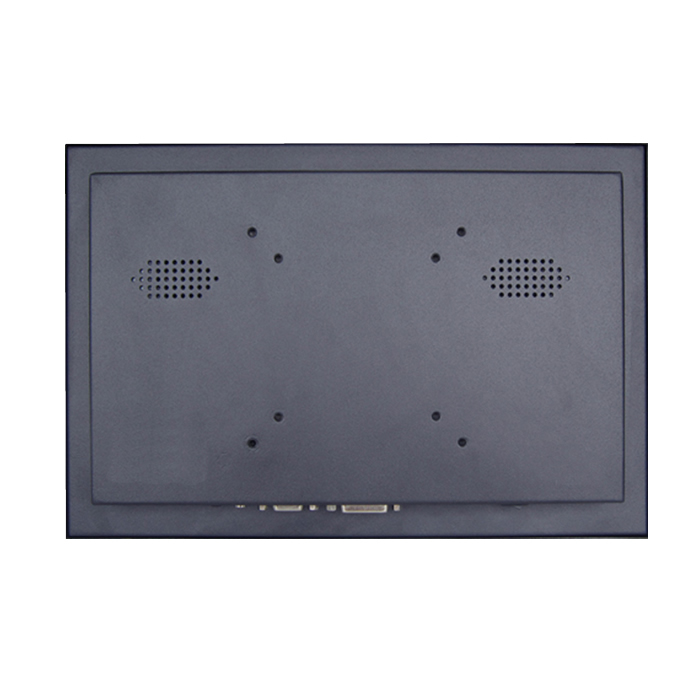

Chassis High Brightness LCD Monitor

Model Name

ITD12CMN1HB02W

IP Rating

IP65 Front Optional

LCD Panel

Screen Diagonal (Inch/cm)

12.1”

Display Active Screen Size (mm)

261.12(H) x 163.2(V)mm

Aspect Ratio

16:10

Physical Resolution

1280 x 800

Maximum Resolution Supported

1920 x 1200

Colors

16.2M

Brightness (cd/m2)

1000nits

Contrast Ratio

800:1

View Angels

80/80/65/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Input / Output

Video Input

1 × VGA

1 × DVI-I

1 × HDMI

Audio

1 × PC-Audio

Touch Connector

1 × USB

Power Connector

1 × DC2.0

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

15W

Order Information

12.1” 16:10 1000nits Chassis LCD Monitor with Resistive Touch

ITD12CMT1HB02W

12.1” 16:10 1000nits Chassis LCD Monitor with IR Touch

ITD12CMT2HB02W

12.1” 16:10 1000nits Chassis LCD Monitor with SAW Touch

ITD12CMT3HB02W

12.1” 16:10 1000nits Chassis LCD Monitor with PCAP Touch

ITD12CMT5HB02W

12.1” 16:10 1000nits Chassis LCD Monitor with Tempered Glass

ITD12CMG1HB02W
