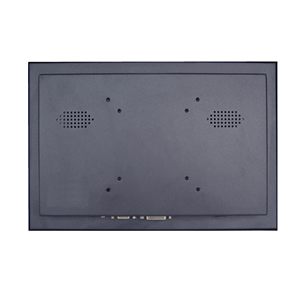

15.6 inch Chassis LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and chassisVESA-mount display
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminalsand industrial machinery builder applications.ITD full-range selection is provided in screen sizes from 5.7¡±~85¡±.




Chassis LCD
Monitor

Model Name

ITD156CMN101

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

15.6¡±

Display Active Screen Size (cm)

344.16(H)¡Á193.59(V)

Aspect Ratio

16:9

Physical Resolution

1366¡Á768 or 1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

262K

Brightness (cd/m2)

250

Contrast Ratio

500:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

12.5W


Order Information



15.6¡±WXGA Chassis LCD Monitor with Resistive Touch

ITD156CMT101

15.6¡±WXGA Chassis LCD Monitor with IR Touch

ITD156CMT201

15.6¡±WXGA Chassis LCD Monitor with SAW Touch

ITD156CMT301

15.6¡±WXGA Chassis LCD Monitor with PCAP Touch

ITD156CMT501

15.6¡±WXGA Chassis LCD Monitor with Tempered Glass

15.6¡±FHD    Chassis LCD Monitor with Resistive Tcouch

15.6¡±FHD    Chassis LCD Monitor with IR Touch

15.6¡±FHD    Chassis LCD Monitor with SAW Touch

15.6¡±FHD    Chassis LCD Monitor with PCAP Touch

15.6¡±FHD    Chassis LCD Monitor with Tempered Glass

ITD156CMG101

ITD156CMT1HR01

ITD156CMT2HR01

ITD156CMT3HR01

ITD156CMT5HR01

ITD156CMG1HR01
