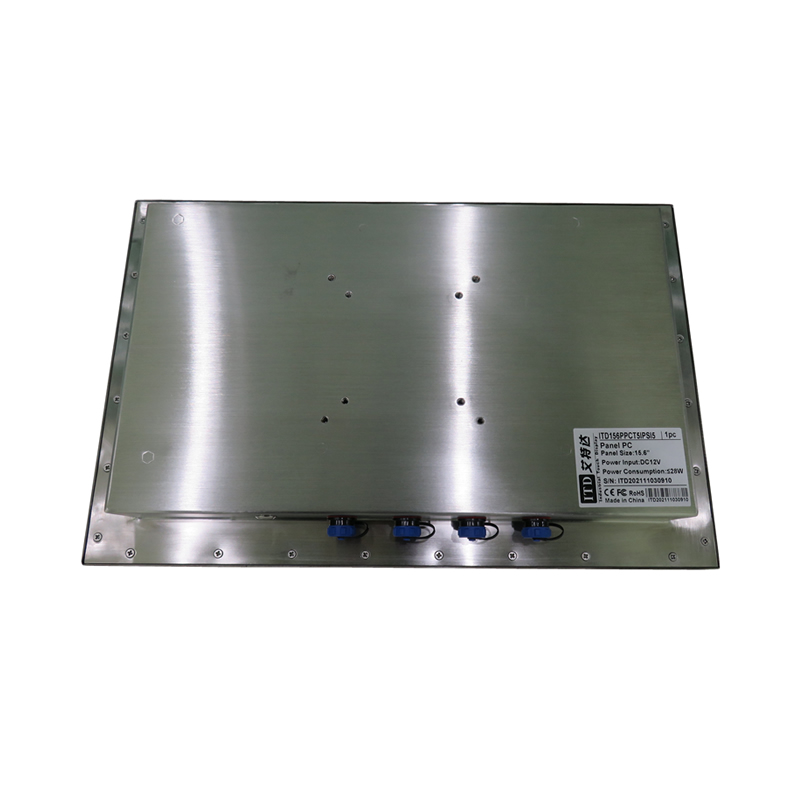

Full IP65/IP66 Touchscreen Panel PC

Model Name

ITD156PPCG1IP**

IP Rating

IP65/IP66(IP67 optional)

PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel? Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel? NM10 Express

Chipset: Intel? HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1×HDMI

1×VGA, 1×HDMI

1×VGA, 1×HDMI

1×USB 2.0

2×USB 2.0, 2×USB3.0

2×USB 2.0, 2×USB3.0

1×mini-SD slot

1×COM(RS232/422/485)

1×COM(RS232/422/485)

1×LAN

1×LAN

1×LAN

1×Audio Out

1×Audio Out, 1×MIC In

1×Audio Out, 1×MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

Default IP65 Connectors:  2×USB 2.0, 1×LAN, 1×DC 2.0

LCD Panel

Screen Diagonal (Inch/cm)

15.6”

Display Active Screen Size (mm)

344.16(H)×193.59(V)

Aspect Ratio

16:9

Physical Resolution

1920×1080

Maximum Resolution Supported

1920×1080

Colors

262K

Brightness (cd/m2)

300

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000Hours’Lifetime

Touch Panel

Touch Options

Resistive, PCAP, Infrared

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

20W~40W

Order Information

15.6” Full IP65/IP66 Panel PC with Resistive Touch, Android RK3288

ITD156PPCT1IPSE1

15.6” Full IP65/IP66 Panel PC with PCAP Touch, Android RK3288

ITD156PPCT5IPSE1

15.6” Full IP65/IP66 Panel PC with Tempered Glass, Android RK3288

ITD156PPCG1IPSE1

15.6” Full IP65/IP66 Panel PC with Resistive Touch, J1900

ITD156PPCT1IPSJ1

15.6” Full IP65/IP66 PC with PCAP Touch, J1900

ITD156PPCT5IPSJ1

15.6” Full IP65/IP66 Panel PC with Tempered Glass, J1900

ITD156PPCG1IPSJ1

15.6” Full IP65/IP66 Panel PC with Resistive Touch, i3

ITD156PPCT1IPSI3

15.6” Full IP65/IP66 Panel PC with PCAP Touch, i3

ITD156PPCT5IPSI3

15.6” Full IP65/IP66 Panel PC with Tempered Glass, i3

ITD156PPCG1IPSI3

15.6” Full IP65/IP66 Panel PC with Resistive Touch, i5

ITD156PPCT1IPSI5

15.6” Full IP65/IP66 Panel PC with PCAP Touch, i5

ITD156PPCT5IPSI5

15.6” Full IP65/IP66 Panel PC with Tempered Glass, i5

ITD156PPCG1IPSI5

15.6” Full IP65/IP66 Panel PC with Resistive Touch, i7

ITD156PPCT1IPSI7

15.6” Full IP65/IP66 Panel PC with PCAP Touch, i7

ITD156PPCT5IPSI7

15.6”3Full IP65/IP66 Panel PC with Tempered Glass, i7

ITD156PPCG1IPSI7
