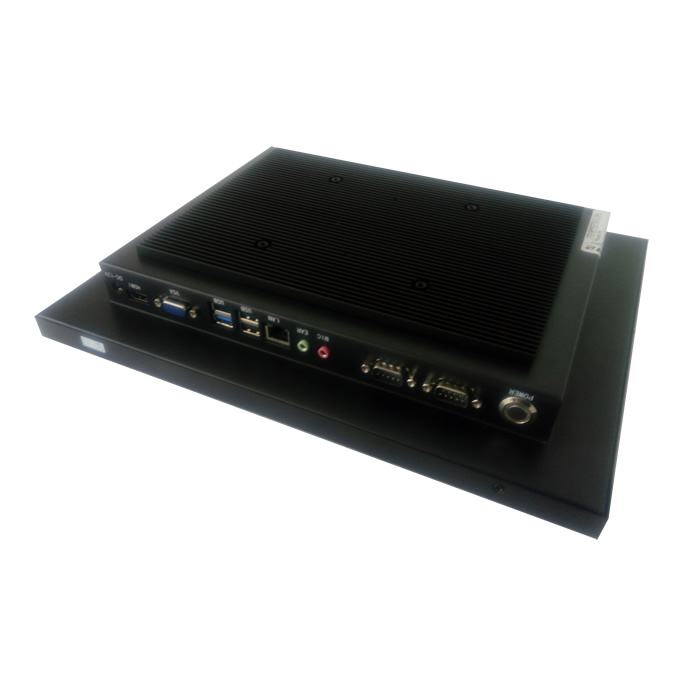

17 inch Chassis Panel PC
BENEFITES
-Exceptional quality and highly engineered industrial panel computer
-High Performance Processor, Graphics, Memory and Power
-All steel construction designedfor harsh& industrialenvironments
-Easy-to-install VESA(75/100mm) wall mounting
-Optional touchscreens like resistive, IR, SAW, PCAP
-Flexible, reliable, and ruggedized for open platform HMI/SCADA
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassispanel PCsis a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection oftechnologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments.ITD chassis panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities whichare ideal for process manufacturing, discrete manufacturing, industrialautomation, process control, building automation, access control, roomreservation, room scheduling, and custom HMI applications.




Chassis Panel PC

Model Name

ITD17PPCG1L**

IP Rating

IP65 Front Panel Optional


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

17¡±

Display Active Screen Size (cm)

337.92(H)¡Á270.34(V)

Aspect Ratio

4:3

Physical Resolution

1280¡Á1024

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

250

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

42.5W


Order Information



17¡±ChassisPanel PC with Resistive Touch, J1900

ITD17PPCT1LJ1

17¡±Chassis Panel PC with PCAP Touch, J1900

ITD17PPCT5LJ1

17¡±Chassis Panel PC with IR Touch, J1900

ITD17PPCT2LJ1

17¡±Chassis Panel PC with Tempered Glass, J1900

ITD17PPCG1LJ1

17¡±Chassis Panel PC with Resistive Touch, i5

ITD17PPCT1LI5

17¡±Chassis Panel PC with PCAP Touch, i5

ITD17PPCT5LI5

17¡±Chassis Panel PC with IR Touch, i5

ITD17PPCT2LJ1

17¡±Chassis Panel PC with Tempered Glass, i5

ITD17PPCG1LI5
