Products > Sunlight Readable LCD > High Bright Sunlight Readable LCD Monitor open Frame  >  18.5 inch Open Frame High Bright Sunlight Readable LCD Monitor

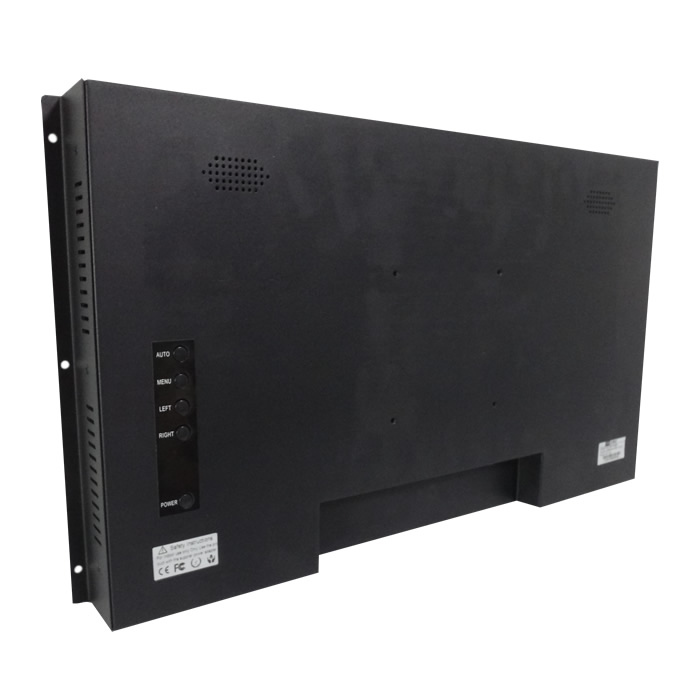

18.5 inch Open Frame High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and open frame rear-mount display
-Multiple mounting options (75/100mm VESA mount and side brackets)
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial open frame sunlight readable LCD displays deliver cost-effective, high quality display solutions for OEMs and system integrators requiring displays integrated into an application.  ITD open frame LCD monitors are packaged in a steel enclosure and durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. These displays are ideal for applications from retail to gaming, hospitality to kiosks and industrial machinery builder for indoor, semi-outdoor and outdoor applications.




Open Frame High Brightness LCD
Monitor

Model Name

ITD18OFN1HB02

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch/cm)

18.5¡±

Display Active Screen Size (mm)

409.8(H) ¡Á 230.4(V)

Aspect Ratio

16:9

Physical Resolution

1366¡Á768

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

1000 cd/m2

Contrast Ratio

1000:1

View Angels

85/85/80/80

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

33W


Order Information

18.5¡±1000nits Open Frame LCD Monitor with Resistive Touch

ITD18OFT1HB02

18.5¡±1000nits Open Frame LCD Monitor with IR Touch

ITD18OFT2HB02

18.5¡±1000nits Open Frame LCD Monitor with SAW Touch

ITD18OFT3HB02

18.5¡±1000nits Open Frame LCD Monitor with PCAP Touch

ITD18OFT5HB02

18.5¡±1000nits Open Frame LCD Monitor with Tempered Glass

ITD18OFG1HB02

18.5¡±1500nits Open Frame LCD Monitor with Resistive Touch

ITD18OFT1HB01

18.5¡±1500nits Open Frame LCD Monitor with IR Touch

ITD18OFT2HB01

18.5¡±1500nits Open Frame LCD Monitor with SAW Touch

ITD18OFT3HB01

18.5¡±1500nits Open Frame LCD Monitor with PCAP Touch

ITD18OFT5HB01

18.5¡±1500nits Open Frame LCD Monitor with Tempered Glass

ITD18OFG1HB01
