Products > Custom Touchscreen Display Solutions > Panel PCs with RFID/NFC/QR/Fingerprint Integrated  >  21.5 inch Industrial All in One Touch Computer with RFID or NFC

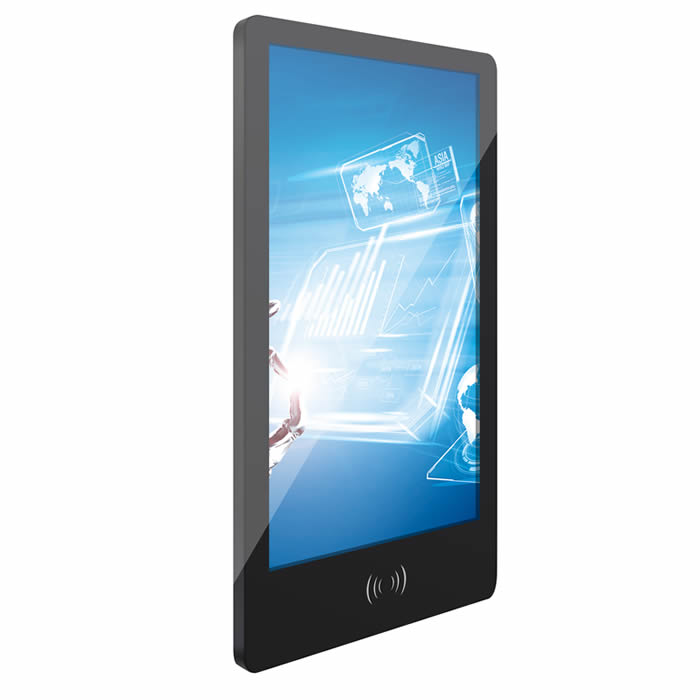

21.5 inch Industrial All in One Touch Computer with RFID or NFC
BENEFITES
- Exceptional quality and highly engineered industrial/commercial panel computer
- High Performance Processor, Graphics, Memory and Power
- RFID/NFC reader, web camera, microphone built-in
- Edge to edge design with true flat surface, easy to clean without bezels
- Ten independent touch points, plug and play
- All steel construction designed for industrial or public environments
- Easy-to-install VESA mounting with brackets
- Landscape or portrait mode optional
- Robust design with aluminum frame NEMA 4/ IP65 front panel
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD Zero-Bezel PCAP touch panel PCs come with built-in card readers like NFC, RFID and IC card. The fanless design decreases downtime and reduces the need for on-site support due to cooling system failure. The multi-touch display allows for configuration and notifications while RFID/NFC reader and camera act as the access control method. The system meets MIL-STD 810F testing procedures and the IP65 compliant front panel is sealed against water and dust intrusion. The built-in RFID/NFC reader works with EM and MIFARE cards and tags. The intuitive touch panel allows for easy operation and the built-in webcam can be used as an intercom through the LAN connection or as a biometric access control system based on facial and voice recognition. The integrated card reader makes the series a complete access control and security system for commercial, residential, industrial, financial, and educational and government institutions.


Industrial All in One Touch Computer with RFID/NFC

Model Name

ITD21PPCT5K**-RFID/NFC

IP Rating

IP65 Front Panel


PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel HD Graphics, Support 1080p

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel

Screen Diagonal (Inch/cm)

21.5¡±

Display Active Screen Size (mm)

476.64(H) ¡Á248.25(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

250nits

Contrast Ratio

1000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Technology

Projected Capacitive Touch

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Touch Life

50,000,000 Times/Click

Surface Hardness

7H

OS Support

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

38W


Order Information

21.5¡±PCAP Touch Panel PC with J1900, RFID

ITD21PPCT5KJ1-RFID

21.5¡± PCAP Touch Panel PC with Android RK3368, RFID

15.6¡±PCAP Touch Panel PC with Android RK3399, RFID

ITD21PPCT5KE1-RFID

ITD21PPCT5KE2-RFID

21.5¡±PCAP Touch Panel PC with i3, RFID

ITD21PPCT5KI3-RFID

21.5¡± PCAP Touch Panel PC with i5, RFID

21.5¡±PCAP Touch Panel PC with i7, RFID

ITD21PPCT5KI5-RFID

ITD21PPCT5KI7-RFID

21.5¡±PCAP Touch Panel PC with J1900, NFC

ITD21PPCT5KJ1-NFC

21.5¡± PCAP Touch Panel PC with Android RK3368, NFC

21.5¡±PCAP Touch Panel PC with Android RK3399, NFC

ITD21PPCT5KE1-NFC

ITD21PPCT5KE2-NFC

21.5¡±PCAP Touch Panel PC with i3, NFC

ITD21PPCT5KI3-NFC

21.5¡± PCAP Touch Panel PC with i5, NFC

21.5¡±PCAP Touch Panel PC with i7, NFC

ITD21PPCT5KI5-NFC

ITD21PPCT5KI7-NFC
