24 inch Flat Bezel Industrial Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Edge to edge design with true flat surface, easy to clean
- Optional touchscreens like resistive, PCAP
- All steel construction designed for harsh and industrial environments
- Easy-to-install embedded/panel mounting with clamps
- Robust design with aluminum NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mount panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 3mm, 6mm, 10mm optional and highly-durable glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with PCAP or resistive touch makes true flat surface with easy to clean. Industrial panel mount panel PCs come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.



Flat Bezel Industrial Panel PC

Model Name

ITD24PPCG1X**

IP Rating

IP65 Front Panel


PC Systems Options



ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel? Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel? HD Graphics, Support 1080p

Chipset: Intel? HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

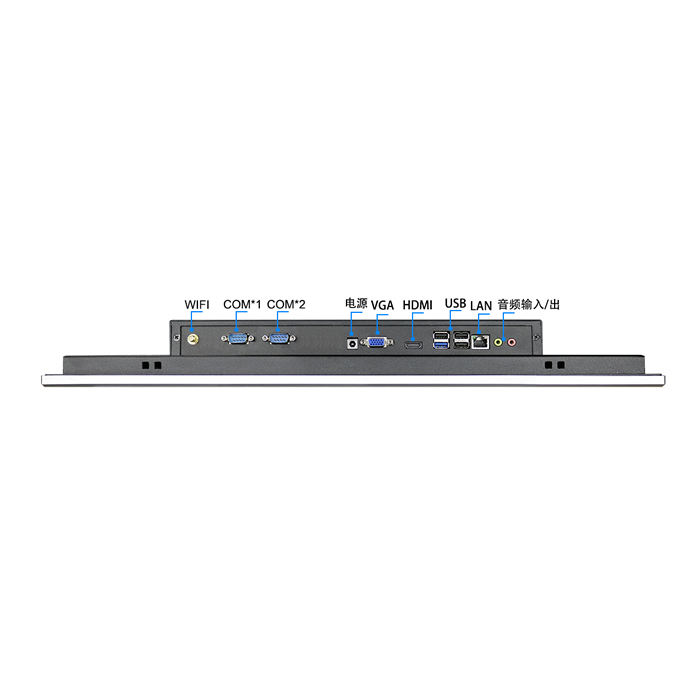

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel



Screen Diagonal (Inch)

24¡±

Display Active Screen Size (cm)

531.36(H) ¡Á298.89(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

300nits

Contrast Ratio

1000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel



Touch Options

PCAP,

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

40W


Order Information



24¡±Panel Mount Panel PC with Resistive Touch, Android RK3288

ITD24PPCT1XE1

24¡±Panel Mount Panel PC with PCAP Touch, Andrord RK3288

ITD24PPCT5XE1

24¡±Panel Mount Panel PC with Tempered Glass, Android RK3288

ITD24PPCG1XE1

24¡±Panel Mount Panel PC with Resistive Touch, J1900

ITD24PPCT1XJ1

24¡±Panel Mount Panel PC with PCAP Touch, J1900

ITD24PPCT5XJ1

24¡±Panel Mount Panel PC with Tempered Glass, J1900

ITD24PPCG1XJ1

24¡±Panel Mount Panel PC with Resistive Touch, i3

ITD24PPCT1XI3

24¡±Panel Mount Panel PC with PCAP Touch, i3

ITD24PPCT5XI3

24¡±Panel Mount Panel PC with Tempered Glass, i3

ITD24PPCG1XI3

24¡±Panel Mount Panel PC with Resistive Touch, i5

ITD24PPCT1XI5

24¡±Panel Mount Panel PC with PCAP Touch, i5

ITD24PPCT5XI5

24¡±Panel Mount Panel PC with Tempered Glass, i5

ITD24PPCG1XI5

24¡±Panel Mount Panel PC with Resistive Touch, i7

ITD24PPCT1XI7

24¡±Panel Mount Panel PC with PCAP Touch, J1900 i7

ITD24PPCT5XI7

24¡±Panel Mount Panel PC with Tempered Glass, J1900    i7

ITD24PPCG1XI7
