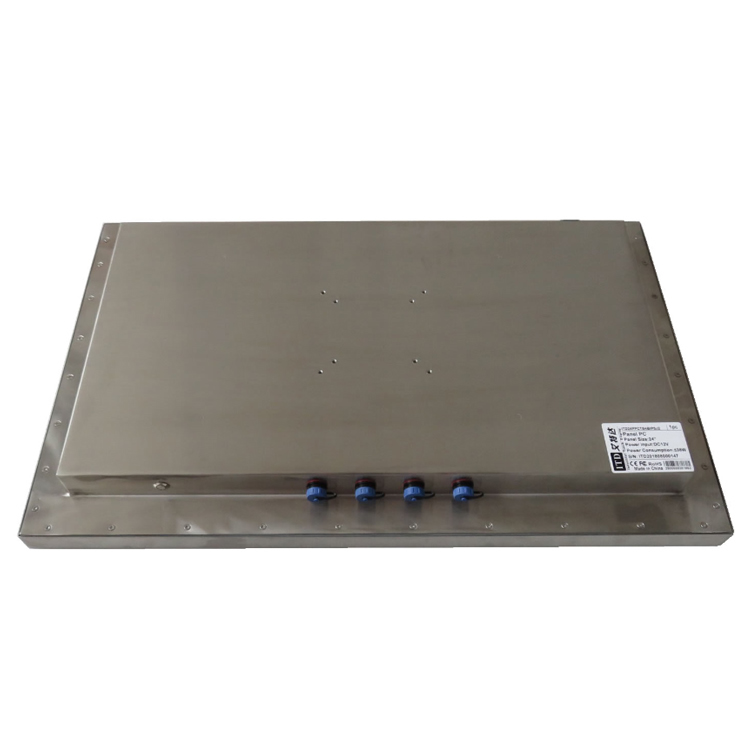

27 inch High Brightness Full IP66 Rugged Stainless Steel Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65, IP66 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP66 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA (75/100mm) wall mounting
- Optional touchscreens like Infrared and PCAP
- High brightness 1000nits optical bonding optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP66 sunlight readable touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP66 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. ITD sunlight readable full IP65 touch panel PCs come with high brightness LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI for semi-outdoor/outdoor applications.



High Brightness Full IP65/IP66 Panel PC

Model Name

ITD27PPCG1IPHB**

IP Rating

IP65/IP66(IP67 optional)


PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel? Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel? NM10 Express

Chipset: Intel? HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

Default Waterproof Connectors:  2¡ÁUSB 2.0, 1¡ÁLAN, 1¡ÁPower Input


LCD Panel

Screen Diagonal (Inch/cm)

27¡±

Display Active Screen Size (mm)

597.6(H) ¡Á336.15(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

1000nits

Contrast Ratio

1000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

PCAP, Infrared

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

0~50¡ãC

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

AC110-240V (DC9-36V optional)

Power Consumption

50W


Order Information

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, Android

ITD27PPCT1IPHBSE2

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, Android

ITD27PPCT5IPHBSE2

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, Android

ITD27PPCG1IPHBSE2

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, J1900

ITD27PPCT1IPHBSJ2

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, J1900

ITD27PPCT5IPHBSJ2

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, J1900

ITD27PPCG1IPHBSJ2

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i3

ITD27PPCT1IPHBSI3

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i3

ITD27PPCT5IPHBSI3

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i3

ITD27PPCG1IPHBSI3

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Resistive Touch, i5

ITD27PPCT1IPHBSI5

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with PCAP Touch, i5

ITD27PPCT5IPHBSI5

27¡±1000nits Full IP65/IP66 Stainless Steel Panel PC with Tempered Glass, i5

ITD27PPCG1IPHBSI5

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, Android

ITD27PPCT1IPHBAE2

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, Android

ITD27PPCT5IPHBAE2

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, Android

ITD27PPCG1IPHBAE2

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, J1900

ITD27PPCT1IPHBAJ2

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, J1900

ITD27PPCT5IPHBAJ2

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with Tempered Glass, J1900

ITD27PPCG1IPHBAJ2

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i3

ITD27PPCT1IPHBAI3

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i3

ITD27PPCT5IPHBAI3

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with Resistive Touch, i5

ITD27PPCT1IPHBAI5

27¡±1000nits Full IP65/IP66 Aluminum Panel PC with PCAP Touch, i5

ITD27PPCT5IPHBAI5
