Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged Full IP65 IP66 Touchscreen Panel PC  >  32 inch Full IP65/IP66 Waterproof Touchscreen Panel PC

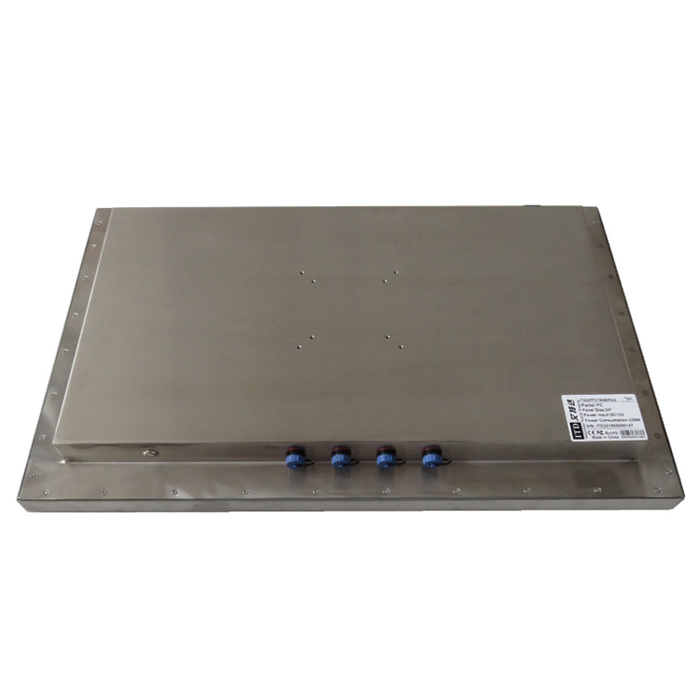

32 inch Full IP65/IP66 Waterproof Touchscreen Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like IR and PCAP
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial full IP65 touch panel PCs are constructed with completely sealed stainless steel or rugged aluminum alloy type IP65 and NEMA 4X enclosure with environmental ratings on the entire system including fully sealed I/O ports that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. ITD full IP65 touch panel PCs come with industrial -grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities which are ideal for harsh environments of process manufacturing, discrete manufacturing, industrial automation, oil, gas, chemicals, and petrochemical manufacturing industries, drilling systems, control & monitoring, oilfield equipment & service and custom HMI applications.





Full IP65/IP66 Touchscreen Panel PC

Model Name

ITD32PPCG1IP**

IP Rating

IP65/IP66(IP67 optional)


PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁVGA, 1¡ÁHDMI

1¡ÁUSB 2.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

2¡ÁUSB 2.0, 2¡ÁUSB3.0

1¡Ámini-SD slot

1¡ÁCOM(RS232/422/485)

1¡ÁCOM(RS232/422/485)

1¡ÁLAN

1¡ÁLAN

1¡ÁLAN

1¡ÁAudio Out

1¡ÁAudio Out, 1¡ÁMIC In

1¡ÁAudio Out, 1¡ÁMIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

Default IP65 Connectors:  2¡ÁUSB 2.0, 1¡ÁLAN, 1¡ÁAC 110~240V


LCD Panel

Screen Diagonal (Inch/cm)

31.5¡±

Display Active Screen Size (mm)

698.4(H)¡Á392.85(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

400

Contrast Ratio

1200:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel

Touch Options

IR, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

0~50¡ãC

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

AC 110~240V

Power Consumption

80W


Order Information

32¡±Full IP65/IP66 Panel PC with IR Touch, J1900

ITD32PPCT2IPJ1

32¡±Full IP65/IP66 Panel PC with PCAP Touch, J1900

ITD32PPCT5IPJ1

32¡±Full IP65/IP66 Panel PC with Tempered Glass, J1900

ITD32PPCG1IPJ1

32¡±Full IP65/IP66 Panel PC with IR Touch, i3

ITD32PPCT2IPI3

32¡±Full IP65/IP66 Panel PC with PCAP Touch, i3

ITD32PPCT5IPI3

32¡±Full IP65 /IP66Panel PC with Tempered Glass, i3

ITD32PPCG1IPI3

32¡±Full IP65/IP66 Panel PC with IR Touch, i5

ITD32PPCT2IPI5

32¡±Full IP65/IP66 Panel PC with PCAP Touch, i5

,

32¡±Full IP65 /IP66Panel PC with Tempered Glass, i5

ITD32PPCG1IPI5


Next£º43 inch Full IP65/IP66 Waterproof Touchscreen Panel PC
Previous£º27 inch Full IP65/IP66 Waterproof Touchscreen Panel PC
