Products > Digital Signage > Digital Menu Posters  >  43 inch Digital Menu Board Poster

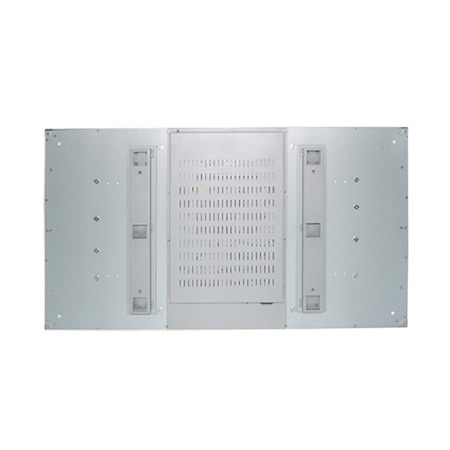

43 inch Digital Menu Board Poster
BENEFITES
- Ensure Continuous Visibility in Bright Settings Exposed to Sunlight
- Deter Sunlight Exposure Damage with a Reinforced HIGH TNi Panel Composition
- Simply Operations Through an All-in-One Design
- Quiet Operation & Super Slim Design
- Connect External Devices Across a Variety of Dedicated Ports
- Visible with Polarized Sunglasses
- Ultra-Low Power Consumption & Longer Lifespan
- All steel construction designed for harsh and industrial environments
- 24/7/365 Running Supported
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
As competition increases, retailers need new ways to engage and inform customers¡­even before they enter the venue. Given this demand, storefront window, drive-thru and even gas pumps have become prized spaces, as these locations offer unparalleled opportunities to connect with captive audiences. ITD ITD-E series 700nits slim displays expand content-sharing possibilities and deliver clear and intriguing messaging for businesses in semi-outdoor and outdoor environments. The displays¡¯ reinforced design ensures continuous visibility and tolerance against intense lighting exposure, while convenient all-in-one management reduces operational burden.



Chassis High Brightness LCD Monitor

Model Name

ITD43CM-E07

IP Rating

IP65 Front Optional


LCD Panel


Screen Diagonal (Inch/cm)

43¡±

Display Active Screen Size (mm)

941.184(H)¡Á529.416(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

700 cd/m2

Contrast Ratio

1200:1

View Angels

89/89/89/89

Surface Treatment

AGLR (Haze 2%)

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime

Orientation

Landscape & Portrait


Mechanical Structure


Bezel Color

Black

Bezel Width

9.85¡Á9.85mm(T/B) 9.8¡Á9.8mm(/L/R)

Outline Dimensions (W¡ÁH¡ÁD)

963.5 ¡Á 552.0 ¡Á 58.8 mm

Weight

TBD

VESA Standard Mount

300 ¡Á 300mm


Solution 1: LCD Monitor

Input / Output


Video Input

1 ¡Á VGA

1 ¡Á DVI-I (Optional)

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

RS232 Remote Control

Optional


Solution 2: ARM Based Android Version

Input / Output


Processor

Quad Core Cortex-A17 1.8Ghz; Octa-Core optional

Chipset

RK3288; RK3399 optional

Memory

Default 2GB

Flash

Default 8GB

Video Output

1 ¡Á HDMI

USB Port

2 ¡Á USB 2.0

SD Card Slot

1 ¡Á SD Card Slot

LAN

1 ¡Á RJ45 Port

Audio Output

1 ¡Á Audio Output

COM

Optional


Operation


Operating Temperature Range

0~50¡ãC

Operating Humidity Range (RH)

20-80%

24/7/365 Use

Supported


Power


Power Indicator

Green LED

Power Input

AC 100-240V (50/60 Hz)

Power Consumption

80W


A
ccessories

Included Accessories

Remote Control (W/O Battery), AC Power Cable

Optional Accessories

Mounting Brackets: Wall Mount, Roof Hanging)


Order Information


43¡±700nits Digital Menu Board Monitor

ITD43CM-E07

43¡±700nits Digital Menu Board Android Player Integrated

ITD43CM-EE7
