Products > Digital Signage > Stretched Bar LCD Monitors  >  48 inch Stretched Bar LCD Display

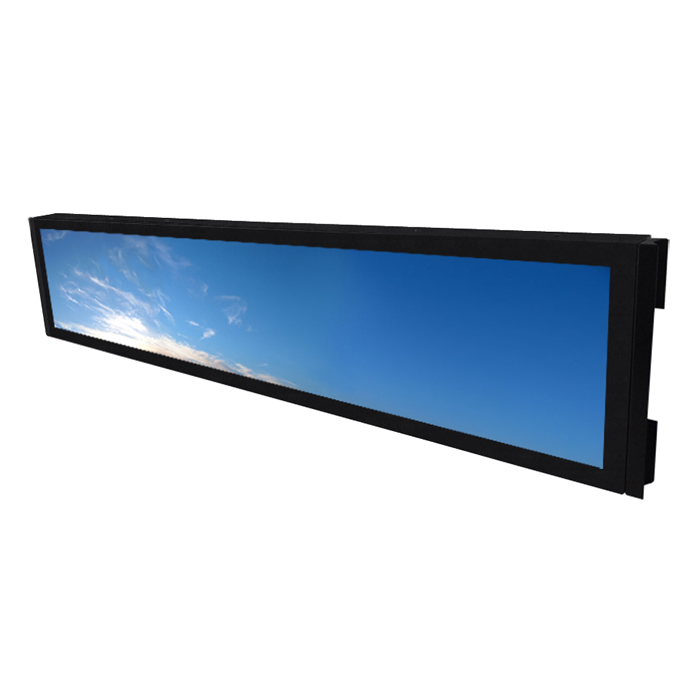

48 inch Stretched Bar LCD Display

BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Stunning HD display, Energy-Efficient LED Backlight Technology
- All steel construction designedfor harsh&publicenvironments
- Optional touchscreenlike custom projected capacitive touch panel
- Superior viewing angles, contrast ratio and brightness
- Optional single media player, network media player integrated
- Portrait and landscape display flexibility
- Unique design accounts for heat ventilation
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people¡¯s attention that¡¯s a perfect alternative of traditional LED displays, Take solace in ITD¡¯s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be withoptional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD stretched bar type LCD display comes with standard 500nits or 1000nitsthat can be used in indoor/outdoorprojects that include, but are not limited to digital signage, restaurant displays, airport terminal signs, public transportation or places that would like to have a special screen for signage displays. The special bar LCD monitor is sturdy and fits well into many applications.




Stretched Bar LCD Display

Model Name

ITD48SDN1**

IP Rating

Optional


Configuration Options

Single LCD Monitor

Single Media Player

ARM Android Based RK3288(RK3368 optional)

1¡ÁVGA Input

Chipset: MSTAR

CPU: Quad-Core Cortex-A17 1.8GHz

1¡ÁDVI Input

Video Formats Supported: MP4¡¢AVI¡¢DAT¡¢MPG¡¢RM¡¢RMVB¡¢AVC¡¢FLV

Chipset: N/A

1¡ÁHDMI Input

Memory: 1G/2G

1¡ÁDC 24V Input

Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE

File Formats Supported: FAT, FAT32, NTFS

HDD/SSD: 8G



1¡ÁHDMI



Picture Formats Supported: JPEG, BMP, GIF, PNG

1 ¡ÁUSB 2.0, 1¡ÁCF Card Slot, 1¡ÁSD Card Slot

1¡ÁUSB 2.0



1¡Ámini-SD slot





1¡ÁLAN



1¡ÁAudio Out

1¡ÁAudio Out



Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe


LCD Panel

Screen Diagonal (Inch)

48¡±

Display Active Screen Size (mm)

1210(H)¡Á185(V)

Aspect Ratio

TBA

Physical Resolution

1920¡Á293

Maximum Resolution Supported

1080P

Colors

16.7M

Brightness (cd/m2)

500 (1000 Optional)

Contrast Ratio

3000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel

Touch Options

Tempered Glass

PCAP (Customized)

Optional

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power /Speakers

Power Indicator

Green LED

Power Input

External Power Supply, DC 24V, DC9-36V Optional

Power Consumption

Speakers

75W

Optional


Mechanical Dimension

Outline Dimension(mm)

1231.2¡Á211.2






Order Information

48¡± Stretched LCD Monitor

ITD48SDN101

48¡±Stretched LCD with Single Media Player

ITD48SDN1A1

48¡±Stretched LCD with Android Media Player

ITD48SDN1E1

48¡± Stretched LCD Monitor 1000nits

ITD48SDN1HB01

48¡±Stretched LCD with Single Media Player 1000nits

ITD48SDN1HBA1

48¡±Stretched LCD with Android Media Player 1000nits

ITD48SDN1HBE1
