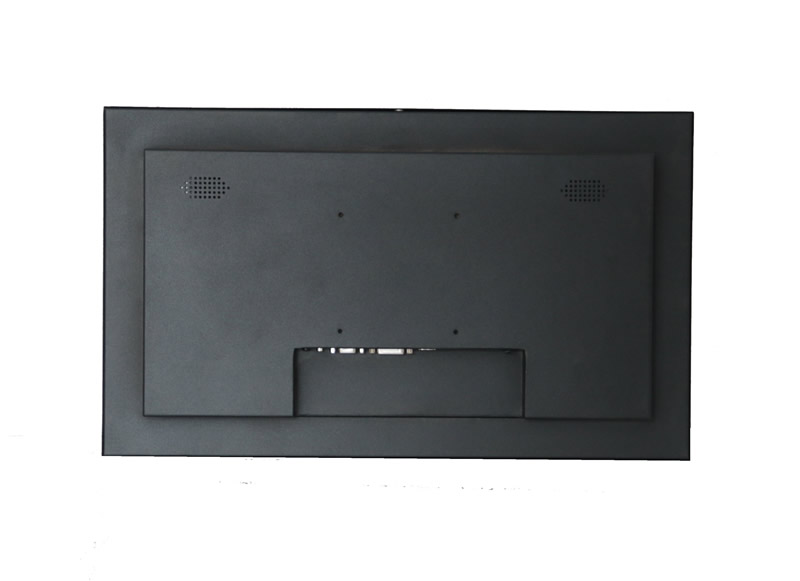

Chassis High Brightness Panel PC

Model Name

ITD49PPCG1HBL**

IP Rating

IP65 Front Panel Optional

PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel? Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel? NM10 Express

Chipset: Intel? HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1×HDMI

1×VGA, 1×HDMI

1×VGA, 1×HDMI

1×USB 2.0

2×USB 2.0, 2×USB3.0

2×USB 2.0, 2×USB3.0

1×mini-SD slot

1×COM(RS232/422/485)

1×COM(RS232/422/485)

1×LAN

1×LAN

1×LAN

1×Audio Out

1×Audio Out, 1×MIC In

1×Audio Out, 1×MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

LCD Panel

Screen Diagonal (Inch)

49”

Display Active Screen Size (cm)

1073.78(H) x 604(V)mm

Aspect Ratio

16:9

Physical Resolution

1920 x 1080

Maximum Resolution Supported

1920 x 1080

Colors

16.7M

Brightness (cd/m2)

1000nits Max. 2500nits

Contrast Ratio

1400:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Options

IR, PCAP, Touch Foil

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

0~50°C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

Internal Power Supply, AC100V~240V

Power Consumption

240W

Order Information

49”1000nits  Chassis Panel PC with PCAP Touch, Android RK3288

ITD49PPCT5HBLE2

49”1000nits  Chassis Panel PC with IR Touch, Android RK3288

ITD49PPCT2HBLE2

49”1000nits  Chassis Panel PC with Tempered Glass, Android RK3288

ITD49PPCG1HBLE2

49”1000nits  Chassis Panel PC with PCAP Touch, J1900

ITD49PPCT5HBLJ2

49”1000nits  Chassis Panel PC with IR Touch, J1900

ITD49PPCT2HBLJ2

49”1000nits  Chassis Panel PC with Tempered Glass, J1900

ITD49PPCG1HBLJ2

49”1000nits  Chassis Panel PC with PCAP Touch, i3

ITD49PPCT5HBLI3

49”1000nits  Chassis Panel PC with IR Touch, i3                           ,;,;,;

ITD49PPCT2HBLI3

49”1000nits  Chassis Panel PC with Tempered Glass, i3

ITD49PPCG1HBLI3

49”1000nits  Chassis Panel PC with PCAP Touch, i5

ITD49PPCT5HBLI5

49”1000nits  Chassis Panel PC with IR Touch, i5

ITD49PPCT2HBLI5

49”1000nits  Chassis Panel PC with Tempered Glass, i5

ITD49PPCG1HBLI5

49”1000nits  Chassis Panel PC with PCAP Touch, i7

ITD49PPCT5HBLI7

49”1000nits  Chassis Panel PC with IR Touch, i7

ITD49PPCT2HBLI7

49”1000nits  Chassis Panel PC with Tempered Glass, i7

ITD49PPCG1HBLI7
