BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory and Power
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Easy-to-install VESA(75/100mm) wall mounting
- Optional touchscreens like IR and PCAP
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project
|
| |||
|
Model Name |
ITD49PPCG1IP** | ||
|
IP Rating |
IP65/IP66(IP67 optional) | ||
|
| |||
|
ARM Android Based RK3288(RK3368 optional) |
X86 Windows Based |
X86 Windows Based | |
|
CPU: Quad-Core Cortex-A17 1.8GHz |
CPU: Intel Celeron J1900 |
CPU: Intel Core i3/i5/i7 | |
|
Chipset: N/A |
Chipset: Intel NM10 Express |
Chipset: Intel HD Graphics, Support 1080p | |
|
Memory: 1G/2G |
Memory: 2GB(Max. 8GB) |
Memory: 2GB(Max. 8GB) | |
|
HDD/SSD: 8G |
HDD/SSD:500G/64G |
HDD/SSD:500G/64G | |
|
1×HDMI |
1×VGA, 1×HDMI |
1×VGA, 1×HDMI | |
|
1×USB 2.0 |
2×USB 2.0, 2×USB3.0 |
2×USB 2.0, 2×USB3.0 | |
|
1×mini-SD slot |
1×COM(RS232/422/485) |
1×COM(RS232/422/485) | |
|
1×LAN |
1×LAN |
1×LAN | |
|
1×Audio Out |
1×Audio Out, 1×MIC In |
1×Audio Out, 1×MIC In | |
|
Expansion: SSD |
Expansion: USB, COM, Mini-PCIe |
Expansion: USB, COM, Mini-PCIe | |
|
Default IP65 Connectors: 2×USB 2.0, 1×LAN, 1×AC 110~240V | |||
|
| |||
|
Screen Diagonal (Inch/cm) |
49” | ||
|
Display Active Screen Size (mm) |
1073.78(H) ×604(V) | ||
|
Aspect Ratio |
16:9 | ||
|
Physical Resolution |
1920×1080 | ||
|
Maximum Resolution Supported |
1920×1080 | ||
|
Colors |
16.7M | ||
|
Brightness (cd/m2) |
450nits | ||
|
Contrast Ratio |
4000:1 | ||
|
View Angels |
89/89/89/89 | ||
|
Backlight/Backlight Lifetime |
LED Backlight with 50000 Hours’ Lifetime | ||
|
| |||
|
Touch Options |
IR, PCAP | ||
|
Touch Drivers |
Windows, Linux, Android, Mac, Raspberry Pi | ||
|
| |||
|
Operating Temperature Range |
0~50°C | ||
|
Humidity Range (RH) |
10-90% | ||
|
24/7/365 Use |
Supported | ||
|
| |||
|
Power Indicator |
Green LED | ||
|
Power Input |
AC 110~240V | ||
|
Power Consumption |
102W | ||
|
| |||
|

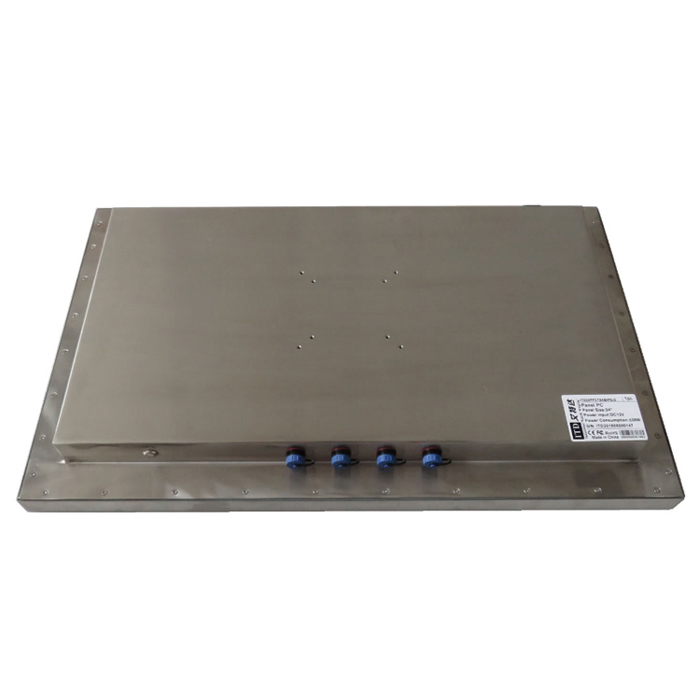

49”Full IP65/IP66 Panel PC with IR Touch, J1900 |
ITD49PPCT1IPJ1 | ||
|
49”Full IP65/IP66 Panel PC with PCAP Touch, J1900 |
ITD49PPCT5IPJ1 | ||
|
49”Full IP65/IP66 Panel PC with Tempered Glass, J1900 |
ITD49PPCG1IPJ1 | ||
|
49”Full IP65/IP66 Panel PC with IR Touch, i3 |
ITD49PPCT1IPI3 | ||
|
49”Full IP65/IP66 Panel PC with PCAP Touch, i3 |
ITD49PPCT5IPI3 | ||
|
49”Full IP65 /IP66Panel PC with Tempered Glass, i3 |
ITD49PPCG1IPI3 | ||
|
49”Full IP65/IP66 Panel PC with IR Touch, i5 |
ITD49PPCT1IPI5 | ||
|
49”Full IP65/IP66, Panel PC with PCA,P Tou,ch, i,,5 |
ITD49PPCT5IPI5 | ||
|
49”Full IP65 /IP66Panel PC with Tempered Glass, i5 |
|||
