Products > Industrial Touchscreen LCD > Chassis LCD Monitor  >  5.7 inch Chassis LCD Monitor

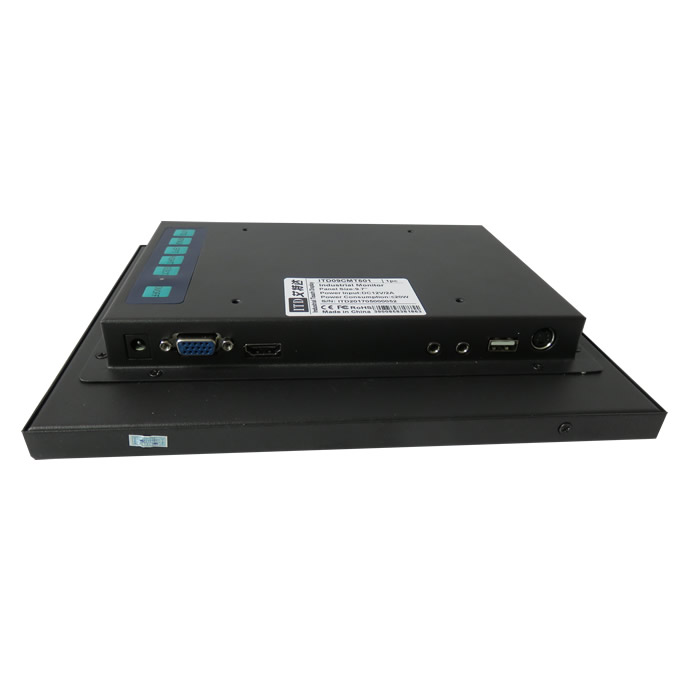

5.7 inch Chassis LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and chassisVESA-mount display
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminalsand industrial machinery builder applications.ITD full-range selection is provided in screen sizes from 5.7¡±~85¡±.




Chassis LCD
Monitor


Model Name

ITD05CMN101

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

5.7¡±

Display Active Screen Size (mm)

115.2¡Á86.4

Aspect Ratio

4:3

Physical Resolution

640¡Á480

Maximum Resolution Supported

1920¡Á1080

Colors

262K

Brightness (cd/m2)

450

Contrast Ratio

800:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

10W


Order Information



5.7¡±Chassis LCD Monitor with Resistive Touch

ITD05CMT101

5.7¡±Chassis LCD Monitor with IR Touch

ITD05CMT201

5.7¡±Chassis LCD Monitor with SAW Touch

ITD05CMT301

5.7¡±Chassis LCD Monitor with PCAP Touch

ITD05CMT501

5.7¡±Chassis LCD Monitor with Tempered Glass

ITD05CMG101

Next£º6.5 inch Chassis LCD Monitor
Previous£º98 inch Large Format LCD Display
