Products > Rugged IP66/IP67/IP69K Stainless Displays > Rugged Full IP65 IP66 Touch Screen Monitor  >  65 inch Full IP66 Touch Screen Monitor

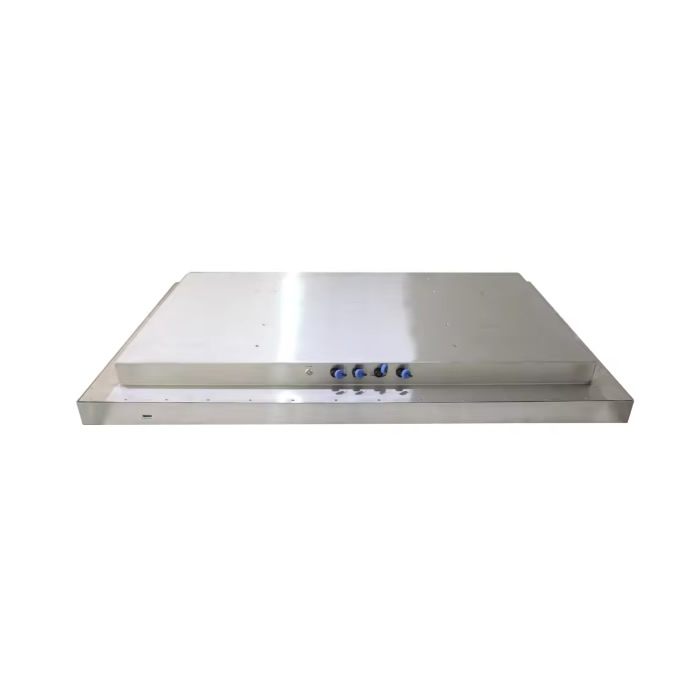

65 inch Full IP66 Touch Screen Monitor
BENEFITES
- Exceptional quality and highly engineered industrial heavy duty monitors
- Optional touchscreens like IR and PCAP
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures
- IP65 sealed, Full IP65 I/O connectors protect from any particles, water, and corrosive agents
- Accuracy in high-use applications
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD full IP66 LCD touchscreen displays are fully-integrated units that combine touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP65/ NEMA 4 Ingress protection rating designed to be tough and rugged.  The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. They are built for demanding applications with high industrial requirement, such as food processing, beverage, pharmaceutical and tobacco industries for operator control and monitoring. ITD full-range selection is provided in screen sizes from 7¡±~65¡±.



Full IP65/IP66
Touchscreen Monitor

Model Name

ITD65CMG1IP*1

IP Rating

Full IP65/IP66(IP67 optional)


LCD Panel

Screen Diagonal (Inch/cm)

65¡±

Display Active Screen Size (mm)

1428.48(H) ¡Á803.52(V)

Aspect Ratio

16:9

Physical Resolution

1920¡Á1080

Maximum Resolution Supported

1920¡Á1080

Colors

16.7M

Brightness (cd/m2)

400nits

Contrast Ratio

4000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

IR, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

N/A

1 ¡Á HDMI(Optional)

Audio

N/A

Touch Connector

1 ¡Á USB(Optional)

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

260W


Order Information

65¡±Full IP65/IP66 LCD Monitor with IR Touch, Aluminum Housing

ITD65CMT2IPA1

65¡±Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD65CMT5IPA1

65¡±Full IP65/IP66 LCD Monitor with IR Touch, Stainless Steel Housing

ITD65CMT2IPS1

65¡±Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD65CMT5IPS1

65¡±Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD65CMG1IPA1

65¡±Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD65CMG1IPS1

Next£º7 inch Full IP65/IP66 Waterproof Touchscreen Panel PC
Previous£º55 inch Full IP66 Touch Screen Monitor
