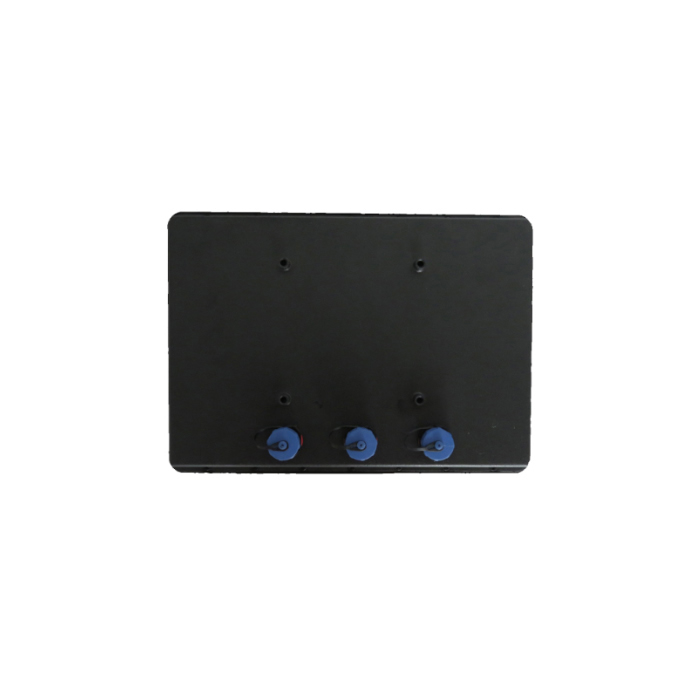

7 inch High Brightness Full IP65/IP66/IP67 Stainless Steel LCD Monitor
BENEFITES
- Exceptional quality and highly engineered industrial heavy duty monitors
- Optional touchscreens like resistive and PCAP
- Ruggedized levels of NEMA 12, 4X, 4, IP52, IP56, IP65, IP66 ratings from all directions
- Solid steel and stainless steel or aluminum alloy enclosures with cooling fin
- IP66 sealed, Full IP66 I/O connectors protect from any particles, water, and corrosive agents
- High brightness from 1000nits to 1500nits optional
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD full IP66 sunlight readable LCD touchscreen displays are fully-integrated units that combine high brightness TFT LCD, touch screen, waterproof and dustproof, fully sealed stainless steel chassis or aluminum alloy chassis and I/O with IP65/ NEMA 4 Ingress protection rating designed to be tough and rugged. The enclosure features easy-to clean stainless steel/aluminum alloy construction that is corrosion resistant. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. They are built for demanding applications with high industrial requirement, such as outdoor kiosk, beverage, marine, oil/gas, pharmaceutical and tobacco industries for operator control and monitoring for semi-outdoor and outdoor applications.



Full IP65/IP66
High Brightness Touchscreen Monitor

Model Name

ITD07CMG1IPHBA2

IP Rating

Full IP65/IP66(IP67 optional)


LCD Panel

Screen Diagonal (Inch/cm)

7¡±

Display Active Screen Size (mm)

156.6(H) x 81.6(V)mm

Aspect Ratio

16:9

Physical Resolution

1024 x 768

Maximum Resolution Supported

1920 x 1080

Colors

262K/16.7M

Brightness (cd/m2)

1000nits

Contrast Ratio

800:1

View Angels

75/75/70/75

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

Resistive, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Default Waterproof I/O

Video Input

1 ¡Á HDMI

Audio

Optional

Touch Connector

1 ¡Á USB(Optional)

Power Connector

1 ¡Á DC 12V (DC9-36V optional)


Operation



Operating Temperature Range

-10~60¡ãC (-20~70¡ãC Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

N/A

Power Input

DC 12V

Power Consumption

8W


Order Information

7¡±1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Aluminum Housing

ITD07CMT1IPHBA1

7¡±1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Aluminum Housing

ITD07CMT5IPHBA1

7¡±1000nits Full IP65/IP66 LCD Monitor with Resistive Touch, Stainless Steel Housing

ITD07CMT1IPHBS1

7¡±1000nits Full IP65/IP66 LCD Monitor with PCAP Touch, Stainless Steel Housing

ITD07CMT5IPHBS1

7¡±1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Aluminum Housing

ITD07CMG1IPHBA1

7¡±1000nits Full IP65/IP66 LCD Monitor with Tempered Glass, Stainless Steel Housing

ITD07CMG1IPHBS1
