7.36 inch Stretched Bar LCD Display

Products > Digital Signage > Stretched Bar LCD Monitors > 7.36 inch Stretched Bar LCD Display

BENEFITES
- Exceptional quality and commercial-grade reliability and performance
- Stunning HD display, Energy-Efficient LED Backlight Technology
- All steel construction designedfor harsh&publicenvironments
- Optional touchscreenlike custom projected capacitive touch panel
- Optional single media player, network media player integrated
- Portrait and landscape display flexibility
- Unique design accounts for heat ventilation
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD stretched bar-type LCD displays with ultra-wide aspect ratio is perfect for catching people’s attention that’s a perfect alternative of traditional LED displays, Take solace in ITD’s Bar LCD Monitor when integrating it into a display as it will always captivate audiences and work to provide as an informative display for any application. The stretched LCD display is a powerful tool for advertising or as an information display that can be withoptional single SD card and USB port, ARM based player and single monitor with VGA, DVI, HDMI inputs integrated. ITD stretched bar type LCD display comes with standard 500nits or 1000nitsthat can be used in indoor/outdoorprojects that include, but are not limited to digital signage, restaurant displays, airport terminal signs, public transportation or places that would like to have a special screen for signage displays. The special bar LCD monitor is sturdy and fits well into many applications.

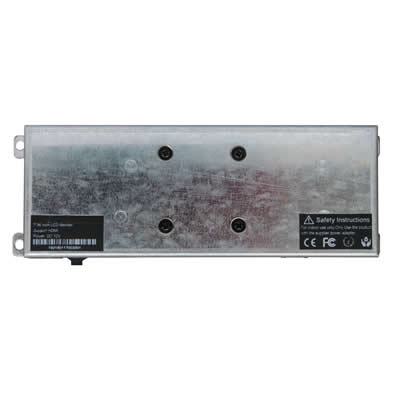

Open Frame Stretched Bar LCD Display
Model Name		ITD07SDN1*2
IP Rating		Optional
Configuration Options
Single LCD Monitor	Single Media Player		ARM Android Based RK3288(RK3368 optional)
1×VGA Input	Chipset: MSTAR		CPU: Quad-Core Cortex-A17 1.8GHz
1×DVI Input	Video Formats Supported: MP4、AVI、DAT、MPG、RM、RMVB、AVC、FLV		Chipset: N/A
1×HDMI Input			Memory: 1G/2G
1×DC 24V Input	Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE File Formats Supported: FAT, FAT32, NTFS		HDD/SSD: 8G
			1×HDMI
	Picture Formats Supported: JPEG, BMP, GIF, PNG 1 ×USB 2.0, 1×CF Card Slot, 1×SD Card Slot		1×USB 2.0
			1×mini-SD slot
			1×LAN
	1×Audio Out		1×Audio Out
	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		7.36”
Display Active Screen Size (mm)		178.56(H)×55.8(V)
Aspect Ratio		16:5
Physical Resolution		1280×400
Maximum Resolution Supported		1920×540
Colors		16.7M
Brightness (cd/m2)		500 (1000 optional)
Contrast Ratio		1000:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options Tempered Glass		PCAP (Customized) Optional
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power /Speakers
Power Indicator		Green LED
Power Input		DC 12 V
Power Consumption Speakers		13W Optional
Mechanical Dimension
Outline Dimension(mm)		215×75
Order Information
7.36”Open Frame Stretched LCD Monitor		ITD07SDN102
7.36”Open Frame Stretched LCD with Single Media Player		ITD07SDN1A2
7.36”Open Frame Stretched LCD with Android Media Player		ITD07SDN1E2
