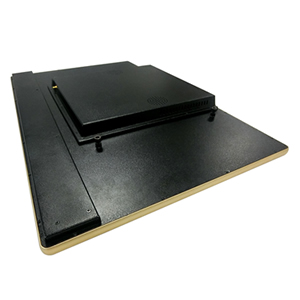

70 inch Large Format LCD Display
BENEFITES
- All steel/aluminum construction provides rugged frame for public use environments
- Tempered glass integrated for vandal proof
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- 4K Ultra HD displays delivering amazingly life-like picture quality
- Easy-to-clean surface without bezels
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITDs line of large format LCD displays ranging in size from 40" - 98", this series features models available with TV function, video inputs, media playback, and zero bezels. Engineered from the ground up for extended commercial use, each model is recommended for up to 24x7 operations and comes standard with a durable steel back chassis. The 4K display optional solutions deliver unparalleled Ultra HD image quality and performance for resolution-rich commercial applications offering unique experiences with value-added features designed to make 4K technology accessible, affordable, and easy to implement. ITD's large format displays are designed for demanding applications with high durability and performance requirements. From communicating information to enhancing ambience, ITD's flat panel display monitor lines are the ideal complement to any retail store, lobby, control room, or other professional application. Each of ITDs large format LCD displays is designed for demanding applications with high durability and performance requirements.




Large Format
LCD Display

Model Name

ITD70ADG1D1

IP Rating

IP65 Front Panel


LCD Panel

Screen Diagonal (Inch/cm)

70

Display Active Screen Size (mm)

1538.88(H) x 865.62(V)

Aspect Ratio

16:9

Physical Resolution

1920 x 1080 or 3840 x 2160

Maximum Resolution Supported

3840 x 2160

Colors

16.7M

Brightness (cd/m2)

450nits

Contrast Ratio

1200:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000HoursLifetime


Input / Output



Video Input

1 TV input(ATVPAL/NTSC)

1 AV inputs

2 HDMI inputs



1 YPbPr input



1 CVBS input&output



2 USB ports

Audio Input/Putput

1 Audio input/output


Operation

Operating Temperature Range

0~50C

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

AC100-240V

Power Consumption

140W


Optional



Wall-Mounting Brackets, Desktop Stand, Network TV Function


Order Information



70Large Format LCD Display with Network TV Integrated

ITD70ADG1DE
