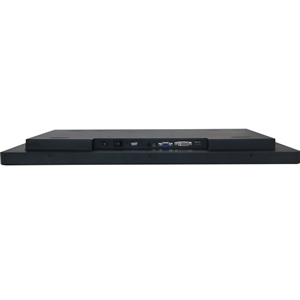

75 inch Chassis LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install cabinet and chassisVESA-mount display
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. Industrial chassis LCD monitors are designed for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminalsand industrial machinery builder applications.ITD full-range selection is provided in screen sizes from 5.7¡±~85¡±.




Chassis LCD
Monitor

Model Name

ITD75CMN101

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

75¡±

Display Active Screen Size (cm)

1650.24¡Á928.26

Aspect Ratio

16:9

Physical Resolution

3840¡Á2160

Maximum Resolution Supported

3840¡Á2160

Colors

16.7

Brightness (cd/m2)

450

Contrast Ratio

4000:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000Hours¡¯Lifetime


Touch Panel



Touch Options

IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB


Operation

Operating Temperature Range

0~50¡ãC (-10~60¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

AC 110V-240V

Power Consumption

140W


Order Information



75¡±Chassis LCD Monitor with IR Touch

ITD75CMT201

75¡±Chassis LCD Monitor with SAW Touch

ITD75CMT301

75¡±Chassis LCD Monitor with PCAP Touch

ITD75CMT501

75¡±Chassis LCD Monitor with Tempered Glass

ITD75CMG101
