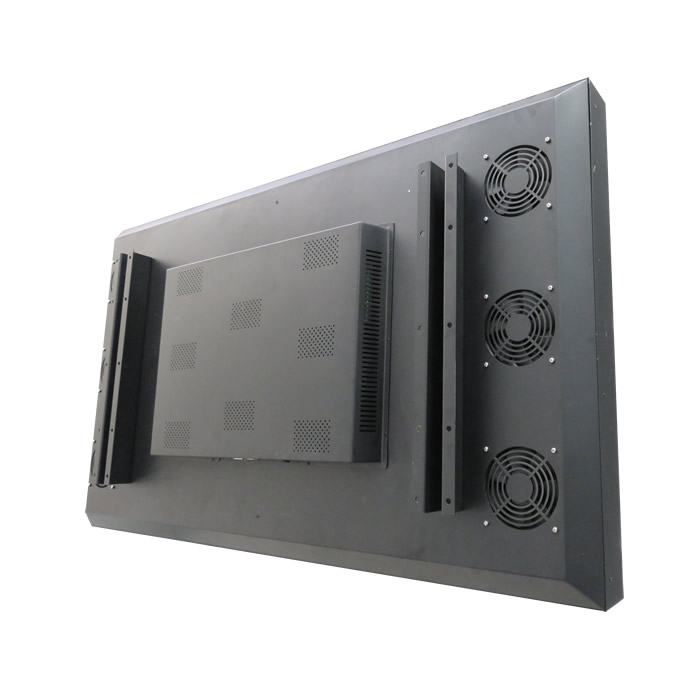

86 inch Chassis High Bright Sunlight Readable LCD Monitor
BENEFITES
-Exceptional quality and highly engineered sunlight readable LCD monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrial environments
-Easy-to-install cabinet and chassis VESA-mount display
-High brightness from 1000nits to 1500nits optional
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial chassis sunlight readable LCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures and highly-durable glass (anti-reflective, anti-glare optional) front surface provide the durability needed for demanding industrial/commercial environments. Optical bonding done optional between TFT panel and tempered glass/touch panel is available for better visualization in sunlight. High brightness chassis LCD monitors are ideal for system integrators, digital signage, kiosks, POI, OEM machinery, transportation depots, theme and amusement parks, airports, industrial/factory automation, railroad terminals and industrial machinery builder for indoor, semi-outdoor or outdoor applications. ITD full-range selection is provided in screen sizes from 6.5¡±~86¡±.




Chassis High Brightness LCD Monitor

Model Name

ITD86CMN1HB01

IP Rating

IP65 Front Optional


LCD Panel

Screen Diagonal (Inch/cm)

86¡±

Display Active Screen Size (mm)

1895.04(H) ¡Á 1065.96(V)

Aspect Ratio

16:9

Physical Resolution

3840¡Á2160

Maximum Resolution Supported

3840¡Á2160

Colors

16.7M

Brightness (cd/m2)

1500 cd/m2

Contrast Ratio

1200:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours¡¯ Lifetime


Touch Panel

Touch Options

IR, PCAP

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output

Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB


Operation

Operating Temperature Range

0~50¡ãC (-10~60¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power

Power Indicator

Green LED

Power Input

Internal Power Supply, AC100V-240V

Power Consumption

600W


Order Information

86¡±1500nits Chassis LCD Monitor with IR Touch

ITD86CMT2HB01

86¡±1500nits Chassis LCD Monitor with Touch Foil

ITD86CMT7HB01

86¡±1500nits Chassis LCD Monitor with PCAP Touch

ITD86CMT5HB01

86¡±1500nits Chassis LCD Monitor with Tempered Glass

ITD86CMG1HB01

86¡±2000nits Chassis LCD Monitor with IR Touch

ITD86CMT2HB03

86¡±2000nits Chassis LCD Monitor with Touch Foil

ITD86CMT7HB03

86¡±2000nits Chassis LCD Monitor with PCAP Touch

ITD86CMT5HB03

86¡±2000nits Chassis LCD Monitor with Tempered Glass

ITD86CMG1HB03
