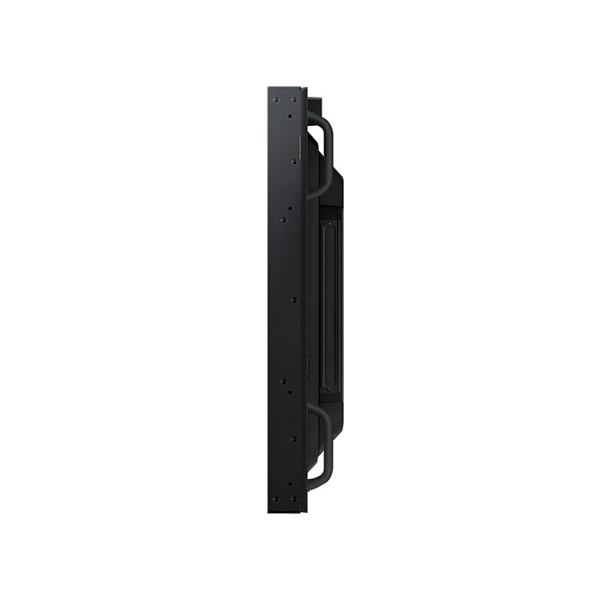

86 inch High Brightness Ultra Slim Window Facing Digital Signage LCD Display
BENEFITES
- Super High Brightness 1500~5000 cd/©O optional with Long Lasting Brightness
- Combined TNi 110¡æ Industrial LCD Panel Avoiding Blackening Issue with Direct Sunlight
- Auto-Dimming Control to Save Power Energy
- Quiet Operation & Super Slim Design
- Visible with Polarized Sunglasses
- Ultra-Low Power Consumption & Longer Lifespan
- All steel construction designed for harsh and industrial environments
- 24/7/365 Running Supported
- Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD HD Series displays not only deliver an image with flawless clarity, but also are designed to maintain its superior picture quality even when exposed to direct sunlight ¨C a common challenge for conventional in-window displays. In addition, with a slim and sleek design, the ITD HD series is compatible with any window layout and highlights the sophisticated and modern style of the brand. The ITD HD series also delivers bright and clear images while consuming a low amount of power, which positions businesses to reduce overall costs and optimize efficiency considerably. ITD¡¯s HD series of window facing digital signage capture customers with its vivid image quality and quiet operation. The HD series helps businesses enhance their brand image while enriching the customers¡¯ shopping experience.



Chassis High Brightness LCD Monitor


Model Name ITD86CM-HD01
IP Rating IP65 Front Optional

LCD Panel

Screen Diagonal (Inch/cm) 86¡±IPS, M+ (WRGB), High TNi 110¡æ
Display Active Screen Size (mm) 1895.04 (H)¡Á1065.96(V)
Aspect Ratio 16:9
Physical Resolution 3840¡Á2160
Maximum Resolution Supported 3840¡Á2160
Colors  1.07B
Brightness (cd/m2) 1500 cd/m2 up to Max. 5000 cd/m2
Contrast Ratio 1100:1
Dynamic CR 500,000:1
View Angels 89/89/89/89
Surface Treatment AGLR (Haze 3%)
Backlight/Backlight Lifetime LED Backlight with 50000 Hours¡¯ Lifetime
Orientation Landscape & Portrait

Mechanical Structure

Bezel Color Black
Bezel Width 15mm(T/B/L/R)
Outline Dimensions (W¡ÁH¡ÁD) mm 1934.00 ¡Á 1106.00 ¡Á85.30
Weight 85.0KG
VESA Standard Mount 500 ¡Á 600mm

Solution 1: LCD Monitor

Input / Output


Video Input 1 ¡Á VGA
1 ¡Á DVI-I (Optional)
1 ¡Á HDMI
Audio  1 ¡Á PC-Audio
RS232 Remote Control Optional

Solution 2: ARM Based Android Version

Input / Output


Processor Quad Core Cortex-A17 1.8Ghz; Octa-Core optional
Chipset RK3288; RK3399 optional
Memory Default 2GB
Flash Default 8GB
Video Output 1 ¡Á HDMI
USB Port 2 ¡Á USB 2.0
SD Card Slot 1 ¡Á SD Card Slot
LAN 1 ¡Á RJ45 Port
Audio Output 1 ¡Á Audio Output
COM Optional

Operation

Operating Temperature Range 0~50¡ãC
Operating Humidity Range (RH) 20-80%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input AC 100-240V (50/60 Hz)
Power Consumption Type/Max.: 1150W/1300W
Smart Energy Saving: 70W

A
ccessories

Included Accessories Remote Control (W/O Battery), AC Power Cable
Optional Accessorries Mounting Brackets: Wall Mount, Roof Hanging, Floor Stand)

Order
 Information

86¡±1500nits Window Facing Digital LCD Monitor Display ITD86CM-HD01
86¡±2000nits Window Facing Digital LCD Monitor Display ITD86CM-HD02
86¡±2500nits Window Facing Digital LCD Monitor Display ITD86CM-HD03
86¡±3000nits Window Facing Digital LCD Monitor Display ITD86CM-HD04
86¡±4000nits Window Facing Digital LCD Monitor Display ITD86CM-HD05
86¡±5000nits Window Facing Digital LCD Monitor Display ITD86CM-HD06
86¡±1500nits Window Facing Digital Android LCD Display ITD86CM-HDE1
86¡±2000nits Window Facing Digital Android LCD Display ITD86CM-HDE2
86¡±2500nits Window Facing Digital Android LCD Display ITD86CM-HDE3
86¡±3000nits Window Facing Digital Android LCD Display ITD86CM-HDE4
86¡±4000nits Window Facing Digital Android LCD Display ITD86CM-HDE5
86¡±5000nits Window Facing Digital Android LCD Display ITD86CM-HDE6
