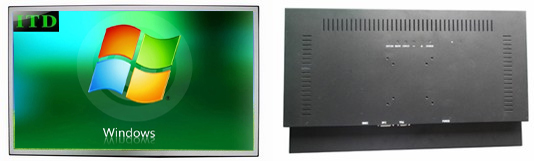

ITD New Product Launch-15.6”Industrial Touch Screen Display (Open Frame Version)
ITD proudly promotes a 15.6” industrial open frame touch screen monitor. Please see the following basic parameters:
|
15.6" Open Frame Monitor(Touch screen optional) | |
|
Mode Name |
ITD15OFN1S3 |
|
Screen Size |
15.6" |
|
Active Display Area (mm) |
344.232mm(W)×193.536mm(H) |
|
Display Mode |
16:9 |
|
LCD Type |
TFT-LCD |
|
Resolution |
1366×768 |
|
Display Color |
16.7M |
|
Pixel Pitch(mm) |
0.252(H)×0.252(V) |
|
Brightness(nits) |
200cd/㎡ |
|
Contrast Ratio |
500:1 |
|
Viewing Angle |
95(H) /50(V) |
|
Response Time |
6ms |
|
Backlight |
LED |
|
Interface |
D-Sub15 pin(VGA),DVI,HDMI |
|
Power |
DC12V 4A 50HZ/60HZ/70HZ |
|
Power
Consumption |
≦20W (Max) |
|
Plug & Play |
DDC 1/2B |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase,
Color, Language.. |
|
MENU |
Chinese/English(other languages supported) |
|
Mount Way |
VESA (additional mounting brackets optional) |
|
Mounting |
VESA 75mm/100mm |
|
Certificate Approval |
CE,RoHS,CCC,FCC,ISO9001 |
|
Warranty |
1 years with DOA and RMA service |
Features:
Long life span with 30k~50k hours
Providing a better optical performance
Plug and Play, advanced OSD
High reliability, good stablity
Flexible designing, easy to be installed in any enclosure
Main Applications:
Banking Automation
Kiosk
Gaming, Slot, Amusement
Industrial Automation
Medial Treatment
ITD will continue to strive, evolve, and strengthen our product standards to meet the ever-changing business environment as well as helping our customers for higher added value and greater growth curve.
