New 17”High Brightness LCD Monitor-Open Frame Monitor-Maximum Impact For Your Display

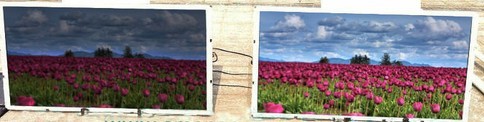

Normal Brightness In Sunlight High Brightness(1500nits) in Sunlight
1500nits brightness and 1000:1 contrast ratio assure excellent visibility even in high bright outdoor environment!
ITD has launched the new high brightness LCD providing excellence in the use of outdoor kiosk. With an extreme brightness level of 1500 nits and static contrast ratio of 1000:1, your display will create an impact in outdoor environments for a variety of customized applications.
|

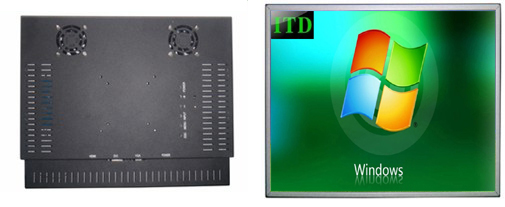

17" High Brightness Open Frame Monitor |
|
|
|
| |
|
Mode Name |
ITD17OFN1HB |
|
|
|
|
|
Screen Size |
17" |
|
|
|
|
|
Active Display Area (mm) |
337.92mm(W)×270.336mm(H) |
|
|
|
|
|
Display Mode |
4:3 |
|
|
|
|
|
LCD Type |
TFT-LCD |
|
|
|
|
|
Resolution |
1280×1024 |
|
|
|
|
|
Display Color |
16.7M |
|
|
|
|
|
Pixel Pitch(mm) |
0.294(H)×0.294(V) |
|
|
|
|
|
Brightness(nits) |
1500cd/㎡ |
|
|
|
|
|
Contrast Ratio |
1000:1 |
|
|
|
|
|
Viewing Angle |
170(H) /160(V) |
|
|
|
|
|
Response Time |
4ms |
|
|
|
|
|
Backlight |
LED |
|
|
|
|
|
Interface |
D-Sub15 pin(VGA),HDMI,DVI |
|
|
|
|
|
Power |
DC12V 4A 50HZ/ 60HZ/ 75HZ |
|
|
|
|
|
Power Consumption |
≦40W (Max) |
|
|
|
|
|
Plug & Play |
DDC 1/2B |
|
|
|
|
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
|
|
|
|
|
MENU |
Chinese/English(other languages supported) |
|
|
|
|
|
Mount Way |
|
|
|
| |
|
Mounting |
VESA 75mm/100mm |
|
|
|
|
|
Certificate Approval |
CE,RoHS,CCC,FCC,ISO9001 |
|
|
|
|
|
Warranty |
1 year |
|
|
|
|
Features:
High Brightness with sunlight readable, high contrast
Long life span with 50k hours
Ultra power consumption, energy saving
Plug and Play, advanced OSD, IR remote control
High reliability, good stablity
Automatic Bright Adjustment Given Environment Brightness (Light sensor integrated)
Recommended Applications:
Out kiosks
Digital signage
Outdoor display
Vehicles/public transport/boarts
Self-surface Terminals
In order to meet different customers’ demands, ITD has developed different inches of sunlight readable LCD displays with different versions like open frame monitor, panel mount monitor, chassis monitor, rack mount monitor, rear mount monitor, desktop monitor, panel PC from 6.5” to 82” in 700nits~2500nits.
Any further suggestion will be appreciated. For more details, please feel free to contact sales@itd-tech.com.
