BENEFITES
- Ideal for modern outdoor environments, providing a seamless and aesthetically pleasing installation.
- Brightness options from 2500 to 5000 nits ensure stunning image quality in any lighting condition.
- Advanced cooling technology keeps the display running silently and efficiently without moving parts.
- Anti-reflective coating and high-brightness LED ensure content remains vivid even under direct sunlight.
- Operating temperature from -40°C to +70°C; IP65-rated for full protection against water and dust.
- IK10-rated impact resistance with durable glass surface for public and unattended installations.
- Minimize glare and improve contrast with optional optical bonding technology.
- Engineered with low power consumption in mind for a greener outdoor solution.
- Featuring integrated leakage and lightning protection for added durability.

OVERVIEW

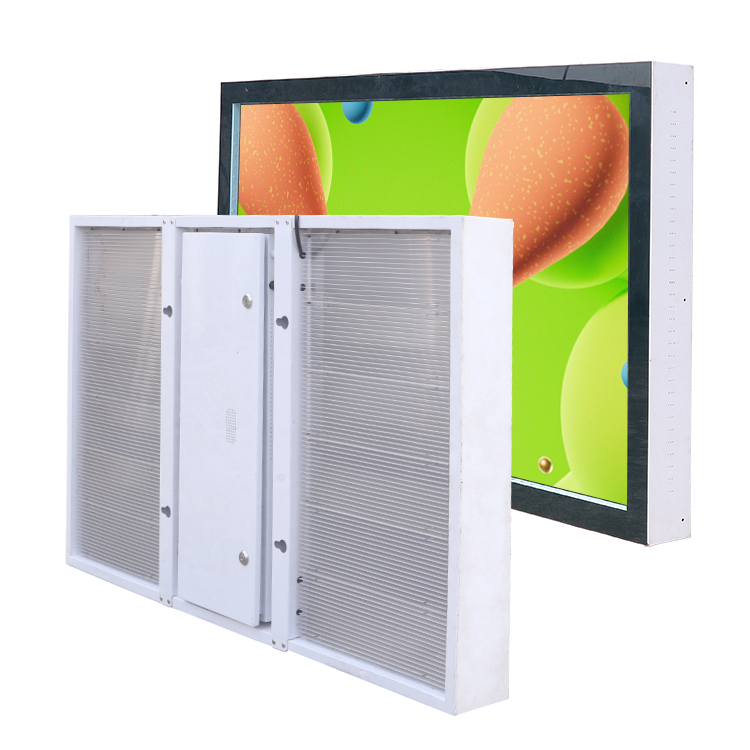

ITD’s Ultra-Thin Full Outdoor Displays designed for high-performance and durability in demanding outdoor environments, our ultra-thin outdoor displays offer a perfect blend of sleek design and robust engineering. With brightness levels up to 5000 nits, advanced superconductive fanless cooling, and IP65-rated protection, this series is built to deliver exceptional clarity and performance under direct sunlight, extreme temperatures, and harsh conditions. Meet the next-generation Ultra-Thin Outdoor Displays – built to thrive in blazing sun, pouring rain, and freezing cold. With a super sleek form factor, whisper-quiet fanless cooling, and unmatched sunlight readability, this is outdoor signage redefined.

IP65 Full Outdoor Fanless LCD Display
Model Name		ITD55CMDIPxxxxx
IP Rating		IP65
Single Media Player/Monitor Option
Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS		1 ×HDMI Input 2 ×USB 2.0, 1 ×TF Card Slot
PC Systems Options
ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional)	X86 Based		X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel? Celeron J1900/J4125/J6412		CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional)
Chipset: Rockchip	Chipset: Intel? SOC		Chipset: Intel? SOC
Memory: 2G, max. 8G	Memory: 4GB(Max. 16GB)		Memory: 4GB(Max. 64GB)
Storage: 16G, max. 256G	Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412)		Storage: 1×MSATA, 1×SATA, 1×M.2
1×HDMI (optional)	1×VGA, 1×HDMI(optional)		1×VGA, 1×HDMI(optional)
2×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot(optional)	2×COM(RS232/422/485) (optional)		2×COM(RS232/422/485) (optional)
1×LAN	1×LAN		1×LAN
1×Audio Out(optional)	1×Audio Out, 1×MIC In(optional)		1×Audio Out, 1×MIC In(optional)
Expansion: COM port	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
Android, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported		Windows 7/10/11/Embedded/IoT, Linux Supported
LCD Panel
Screen Diagonal (Inch)		55”
Display Active Screen Size (mm)		1209.6(W)×680.4(H)
Pixel Pitch(mm)		0.315×0.315
Aspect Ratio		16:9
Physical Resolution		1920×1080 (3840×2160 optional)
Response Time		8ms
Colors		1.07B
Brightness (cd/m2)		1500 cd/m2(2000~5000cd/m2 optional)
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel Available for Network Version
Touch Options		PCAP Touch, Touch Foil
Touch Drivers		Plug and Play
Operation
Operating Temperature Range		-40~70°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Structure
Housing Material		All Aluminum Casing with Superconductive Heat Dissipation
Surface Coating		Anti-Reflective Coating
Mounting		Wall Mounting, Floor Standing optional
Power /Speakers
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption Speakers		220W 2×5W
Order Information
55”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with HDMI input		ITD55CMDIPWxx01
55”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Android Player		ITD55CMDIPWxxEx
55”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Windows Player		ITD55CMDIPWxxJx
55”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with HDMI input		ITD55CMDIPLxx01
55”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with Android Player		ITD55CMDIPLxxEx
55”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with Windows Player		ITD55CMDIPLxxJx
