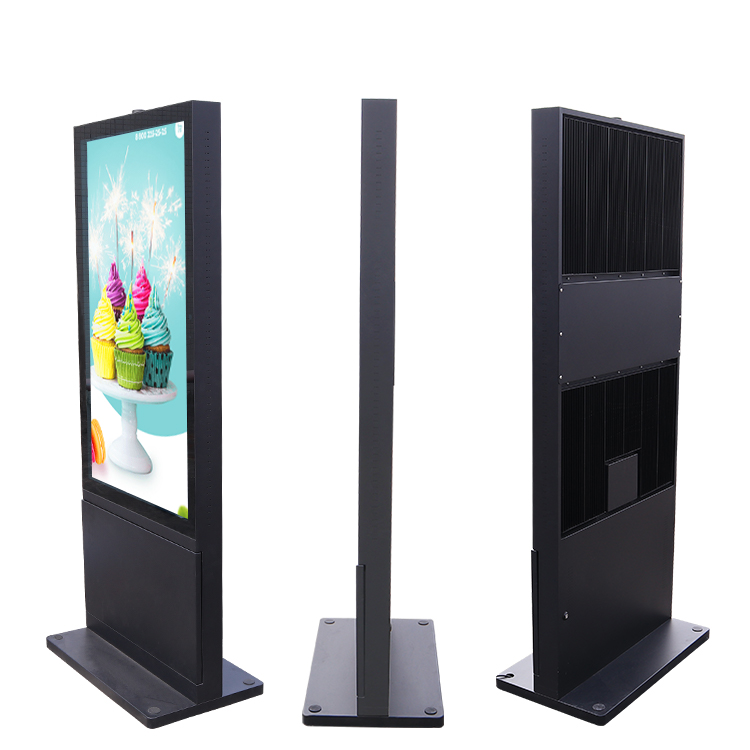

65 Fanless Full IP65 Outdoor Digital Signage Kiosk
| CUSTOM LCD SOLUTIONS | SUPPORT |
IP65 Full Outdoor Fanless LCD Display | |||
| Model Name | ITD65CMDIPxxxxx | ||
| IP Rating | IP65 | ||
Single Media Player/Monitor Option | |||
| Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS |
1 ×HDMI Input 2 ×USB 2.0, 1 ×TF Card Slot | ||
PC Systems Options | |||
| ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional) | X86 Based | X86 Based | |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel? Celeron J1900/J4125/J6412 | CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional) | |
| Chipset: Rockchip | Chipset: Intel? SOC | Chipset: Intel? SOC | |
| Memory: 2G, max. 8G | Memory: 4GB(Max. 16GB) | Memory: 4GB(Max. 64GB) | |
| Storage: 16G, max. 256G | Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412) | Storage: 1×MSATA, 1×SATA, 1×M.2 | |
| 1×HDMI (optional) | 1×VGA, 1×HDMI(optional) | 1×VGA, 1×HDMI(optional) | |
| 2×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 | |
| 1×mini-SD slot(optional) | 2×COM(RS232/422/485) (optional) | 2×COM(RS232/422/485) (optional) | |
| 1×LAN | 1×LAN | 1×LAN | |
| 1×Audio Out(optional) | 1×Audio Out, 1×MIC In(optional) | 1×Audio Out, 1×MIC In(optional) | |
| Expansion: COM port | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe | |
| Android, Linux Supported | Windows 7/10/11/Embedded/IoT, Linux Supported | Windows 7/10/11/Embedded/IoT, Linux Supported | |
LCD Panel | |||
| Screen Diagonal (Inch) | 65” | ||
| Display Active Screen Size (mm) | 1428.48(W)×803.52(H) | ||
| Pixel Pitch(mm) | 0.372×0.372 | ||
| Aspect Ratio | 16:9 | ||
| Physical Resolution | 3840×2160 optional | ||
| Response Time | 8ms | ||
| Colors | 1.07B | ||
| Brightness (cd/m2) | 2500 cd/m2(1000~5000cd/m2 optional) | ||
| Contrast Ratio | 1200:1 | ||
| View Angels | 89/89/89/89 | ||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | ||
Touch Panel Available for Network Version | |||
| Touch Options | PCAP Touch, Touch Foil | ||
| Touch Drivers | Plug and Play | ||
Operation | |||
| Operating Temperature Range | -40~70°C | ||
| Humidity Range (RH) | 10-90% | ||
| 24/7/365 Use | Supported | ||
Structure | |||
| Housing Material | All Aluminum Casing with Superconductive Heat Dissipation | ||
| Surface Coating | Anti-Reflective Coating | ||
| Mounting | Wall Mounting, Floor Standing optional | ||
Power /Speakers | |||
| Power Indicator | Green LED | ||
| Power Input | Internal Power Supply, AC 100V~240V | ||
| Power Consumption Speakers |
300W 2×10W | ||
Order Information | |||
| 65”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with HDMI input | ITD65CMDIPWxx01 | ||
| 65”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Android Player | ITD65CMDIPWxxEx | ||
| 65”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Windows Player | ITD65CMDIPWxxJx | ||
| 65”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with HDMI input | ITD65CMDIPLxx01 | ||
| 65”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with Android Player | ITD65CMDIPLxxEx | ||
| 65”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with Windows Player | ITD65CMDIPLxxJx | ||
