BENEFITES
- Sleek, modern appearance with a flat-back profile for seamless wall or kiosk integration in outdoor environments.
- Ensures superior visibility in direct sunlight, ideal for sun-exposed installations such as street signage, transit stops, and drive-thrus.
- Advanced passive cooling design ensures efficient heat transfer and silent operation, eliminating the need for fans and reducing points of failure.
- Anti-reflective coating and optical enhancements maintain clarity and contrast even in bright outdoor light.
- Improves sunlight readability, strengthens the display structure, and reduces internal reflections and moisture intrusion.
- Designed to perform reliably in extreme outdoor environments, from freezing cold to intense summer heat.
- Fully enclosed chassis protects against dust, rain, snow, and humidity — ideal for 24/7 outdoor deployment.
- Impact-resistant touch surface offers durability and protection in public or unattended areas.
- Energy-efficient operation with eco-conscious design, supporting sustainable outdoor digital signage deployments.
- Electrical safety features enhance system reliability in unstable power environments or during storms.

OVERVIEW
ITD’s Ultra-Thin Fanless Full Outdoor Displays: Elevate your outdoor communication with our next-generation Outdoor Digital Signage LCD Display — a perfect fusion of performance, durability, and silent operation. Built to excel in harsh environments, this ultra-thin display features cutting-edge passive cooling technology, eliminating the need for mechanical fans and reducing maintenance requirements. Delivering crystal-clear content even under direct sunlight, thanks to high-brightness options and anti-glare treatment, it ensures your message stands out day and night. Rated IP65 and engineered for extreme temperature ranges, it’s a reliable solution for smart cities, outdoor retail, QSR drive-thrus, transportation networks, and more. Designed for 24/7 operation, this display keeps your content visible, your audience engaged, and your infrastructure worry-free.

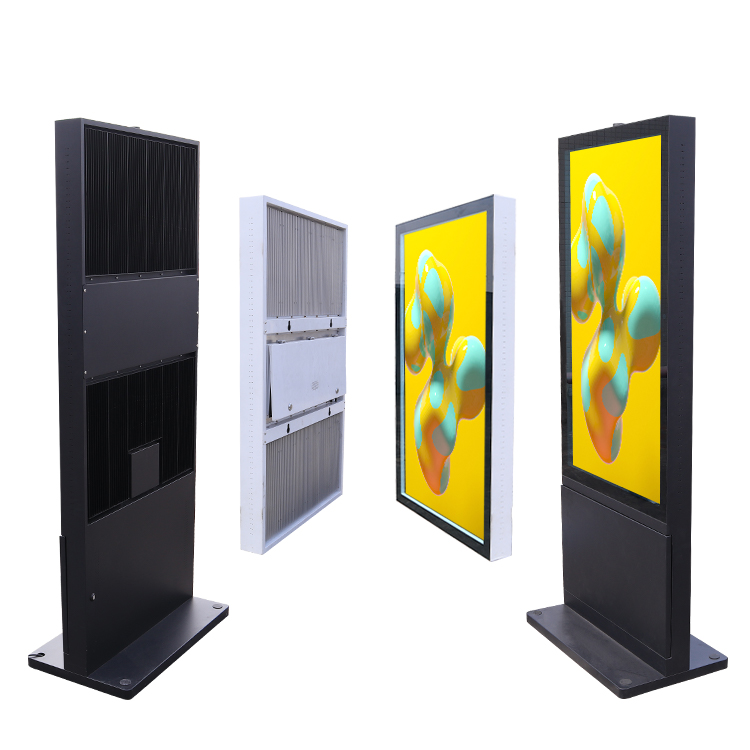

IP65 Full Outdoor Fanless LCD Display
Model Name		ITD75CMDIPxxxxx
IP Rating		IP65
Single Media Player/Monitor Option
Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS		1 ×HDMI Input 2 ×USB 2.0, 1 ×TF Card Slot
PC Systems Options
ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional)	X86 Based		X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel? Celeron J1900/J4125/J6412		CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional)
Chipset: Rockchip	Chipset: Intel? SOC		Chipset: Intel? SOC
Memory: 2G, max. 8G	Memory: 4GB(Max. 16GB)		Memory: 4GB(Max. 64GB)
Storage: 16G, max. 256G	Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412)		Storage: 1×MSATA, 1×SATA, 1×M.2
1×HDMI (optional)	1×VGA, 1×HDMI(optional)		1×VGA, 1×HDMI(optional)
2×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot(optional)	2×COM(RS232/422/485) (optional)		2×COM(RS232/422/485) (optional)
1×LAN	1×LAN		1×LAN
1×Audio Out(optional)	1×Audio Out, 1×MIC In(optional)		1×Audio Out, 1×MIC In(optional)
Expansion: COM port	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
Android, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported		Windows 7/10/11/Embedded/IoT, Linux Supported
LCD Panel
Screen Diagonal (Inch)		75”
Display Active Screen Size (mm)		1649.66(W)×927.936(H)
Pixel Pitch(mm)		0.4296×0.4296
Aspect Ratio		16:9
Physical Resolution		3840×2160 optional
Response Time		8ms
Colors		1.07B
Brightness (cd/m2)		2500 cd/m2(1000~5000cd/m2 optional)
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel Available for Network Version
Touch Options		PCAP Touch, Touch Foil
Touch Drivers		Plug and Play
Operation
Operating Temperature Range		-40~70°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Structure
Housing Material		All Aluminum Casing with Superconductive Heat Dissipation
Surface Coating		Anti-Reflective Coating
Mounting		Wall Mounting, Floor Standing optional
Power /Speakers
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption Speakers		450W 2×10W
Order Information
75”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with HDMI input		ITD75CMDIPWxx01
75”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Android Player		ITD75CMDIPWxxEx
75”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Windows Player		ITD75CMDIPWxxJx
75”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with HDMI input		ITD75CMDIPLxx01
75”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with Android Player		ITD75CMDIPLxxEx
75”IP65 Full Outdoor Ultra-Slim Floor-Standing LCD Display with Windows Player		ITD75CMDIPLxxJx
