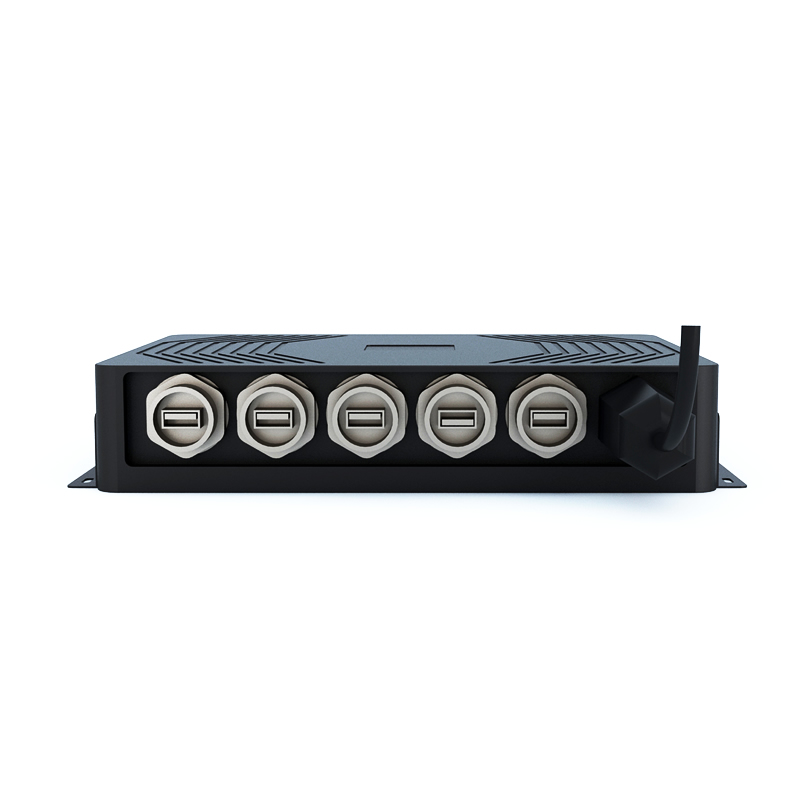

Rugged Full IP67 ARM Based Box Computer 1

BENEFITES
- Fully sealed for protection against water jets, dust, moisture, and contaminants – ideal for wash-down areas and outdoor applications.
- Delivers high-performance powerful RK3588 Octa-Core processor computing for multimedia, AI inference, machine vision, and control tasks.
- Flexible and developer-friendly platform for Android 12/13 or Linux Operating System with support for modern applications and security updates.
- Industrial-grade memory and storage (16GB RAM + 128GB eMMC Storage) for fast data processing and smooth multitasking.
- Reliable high-speed wireless connectivity with WiFi 6 and dual antennas, even in challenging environments.
- Fanless & maintenance-free design with silent operation and reduced failure risk from moving parts.
- Rich I/O Option supporting integration with a variety of industrial devices, sensors, displays, and networks.
- wide temperature & voltage support designed for stable operation in demanding thermal and electrical conditions.
- The ARM-based architecture ensures low energy consumption, making the device efficient for long-term, cost-effective operation in remote or power-limited locations.
- Integrated passive cooling for effective heat dissipation without the need for a fan, maintaining optimal performance even in high temperatures.
- Meets industrial certifications for reliability and safety, ensuring durability in regulated environments like manufacturing, logistics, and automation.
- Designed for continuous operation in demanding environments, ITD’s box computer ensures long-term durability and reduced downtime, minimizing maintenance costs.

OVERVIEW
ITD’s Rugged IP66 Android Box Computer is purpose-built for industrial and outdoor environments where durability, stability, and high performance are non-negotiable. Powered by the advanced Rockchip RK3588 Octa-Core processor, this compact yet powerful device runs on Android 12/13, offering seamless performance for smart automation, edge computing, and embedded applications. With a fully enclosed IP66-rated housing, it offers complete protection against water, dust, humidity, and corrosion — making it ideal for use in marine, transportation, food processing, energy, smart city, and harsh factory environments. Its fanless design, dual WiFi 6 antennas, and industrial-grade build ensure long-term reliability under extreme conditions.


Rugged Full IP66 ARM Based Box Computer RK3588

Model Name ITD-MNPC-IPAN-3588
IP Rating IP66

PC Systems

CPU ARM Octa Core RK3588, Cortex-4×A76+4×A55
GPU Mali-G610 MP4 Quade GPU
Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
RAM Default to LPDDR4/LPDDR4x 4GB 64bit LPDDR4/LPDDR4x, Max. 64GB
ROM Default to eMMC 32GB, Max. 128GB
Multi Media VPU 8K@60fps H.265/H.264/VP9 Video Decoding NPU Computing Power; 6Tops, 8K Video Encoding and Decoding
OS Support Android 12/Linux

Default Waterproof IP66 I/O

Audio 1 × Audio Output
USB Ports 4 × USB, 1×USB OTB
LAN 1 × RJ45 (10M/100M/1000M Ethernet)
Video Output 1 × HDMI Output
Power 1 × DC9~36V input

Network

Bluetooth Bluetooth 5.2
LAN 1 × RJ45 (10M/100M/1000M Ethernet)
WiFi 2.4GHz&5GHz, IEEE 802.11b/g/n/AC, (Built-in High-Performance SDIO Interface WiFi6 Module, 2×Antenna)
4G/5G Optional

File Support

Video H.264, MKV, WMV9, MPEG 1/2/4, HD Divx, Xvid, RM/RMVB;
Image BMP/PNG/GIF/JPEG
Audio MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis (Ogg), AC3, FLAC, APE, BSAC
Scrolling Text txt

Others

Power Switch 1 × Power Switch
Breathing Valve 1 × Breathing Valve

On-Screen Display Languages

English, French, German, Italian, Polish, Russian, Simplified Chinese, Spanish, Turkish, Arabic, Japanese, Traditional Chinese etc.

Power

Power Indicator LED Light
Power Input DC 9~36V
Power Consumption 15W

Mechanical Structure

Box Material and Surface Aluminum Alloy, Full CNC Treated, Anodizing and Anti-scratch Treatment
Color Black or Silver
Mounting Method VESA Mounting 75 ×75mm
Cooling System Passive Cooling

Operation

Operating Temperature -20~60℃
Storage Temperature -30~70℃
Relative Humidity 0%~95%(non-condensation)
Box Material and Surface Die-Casting Aluminum Chassis
Vibration 50 ~ 500 Hz, 1.5G, 0.15mm Peak to Peak
Shock 10 G/Peak (11 ms)

Order Information

Rugged Full IP66 ARM Based Box Computer RK3588 ITD-MNPC-IPAN-RK3588
