BENEFITES
- Ultra-High Brightness (3000nits): Ensures perfect visibility under direct sunlight for outdoor readability.
- Optical Bonding Technology: Eliminates air gaps, improves touch accuracy, reduces glare, and enhances screen durability.
- Full IP65-Rated Protection: Dustproof and waterproof design for both front and rear, ideal for harsh outdoor conditions.
- Slim & Modern Ultra-Thin Design: Space-saving structure with narrow bezels and pure-flat back, ideal for wall-mount installations.
- Fanless, Maintenance-Free Operation: Sealed design with passive cooling – no internal fans or filters required.
- Intelligent Brightness Control: Automatically adjusts brightness according to ambient light to reduce power usage and extend panel life.
- Industrial-Grade Wide Temperature LCD Panel: Withstands extreme outdoor temperatures without blackening.
- PCAP Touch Screen(optional) with Polarized Sunglasses Compatibility: Smooth and responsive touch function, viewable even with polarized lenses.
- Flexible Configurations optional: Supports monitor, ARM based board, x86 motherboard built-in optional.
- Energy-Efficient & Eco-Friendly: Designed with low power consumption in mind for long-term sustainable operation.

OVERVIEW

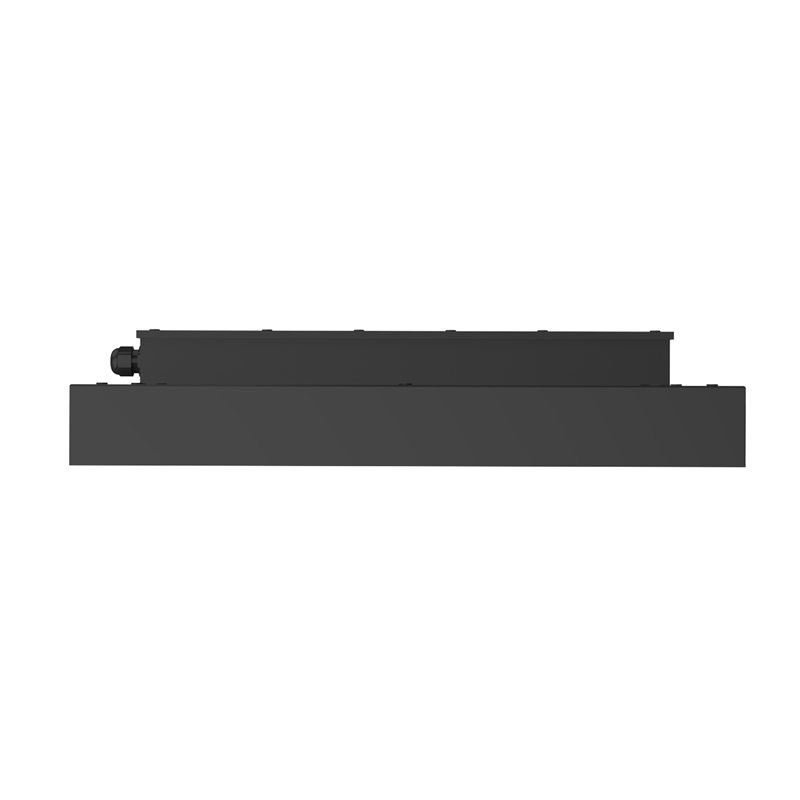

ITD’s 32” Ultra-Thin Landscape Wall-Mount Outdoor Display is a compact yet powerful solution designed for demanding outdoor applications where space, visibility, and reliability are key. With a slim, modern design and full IP65-rated waterproof and dustproof protection, it is ideal for fixed installations in outdoor retail signage, transportation systems, building entrances, and smart city infrastructures. This 32-inch display features optical bonding for enhanced screen clarity and touch accuracy, as well as ultra-high brightness up to 3000 nits, ensuring excellent readability even under direct sunlight. It supports automatic brightness adjustment, operation with waterproof fans and wide temperature endurance, making it maintenance-free and perfectly suited for 24/7 outdoor use. The display also supports touch screen, and polarized sunglasses compatibility, delivering a seamless and user-friendly viewing experience in any lighting condition.

IP65 Full Outdoor Wall-Mounting LCD Display
Model Name	ITD32CMODIPWxx
IP Rating	IP65
Single Media Player/Monitor Option
Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS	1 ×HDMI Input 2 ×USB 2.0, 1×TF Card Slot
PC Systems Options
ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel? Celeron J1900/J4125/J6412	CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional)
Chipset: Rockchip	Chipset: Intel? SOC	Chipset: Intel? SOC
Memory: 2G, max. 8G	Memory: 4GB(Max. 16GB)	Memory: 4GB(Max. 64GB)
Storage: 16G, max. 256G	Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412)	Storage: 1×MSATA, 1×SATA, 1×M.2
1×HDMI Output	1×HDMI Output(optional)	1×HDMI Output(optional)
1×USB 2.0	2×USB	2×USB
1×mini-SD slot(optional)	2×COM(RS232/422/485) (optional)	2×COM(RS232/422/485) (optional)
1×LAN	1×LAN	1×LAN
1×Audio Out(optional)	1×Audio Out, 1×MIC In(optional)	1×Audio Out, 1×MIC In(optional)
Expansion: USB, COM port	Expansion: USB, COM	Expansion: USB, COM
Android, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported
LCD Panel
Screen Diagonal (Inch)	32”
Display Active Screen Size (mm)	698.4(W)×392.85(H)
Pixel Pitch(mm)	0.36375×0.36375
Aspect Ratio	16:9
Physical Resolution	1920×1080
Response Time	14ms
Colors	16.7M
Brightness (cd/m2)	1500 cd/m2(2000~3000cd/m2 optional)
Contrast Ratio	1000:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000Hours'Lifetime
Touch Panel Available for Network Version
Touch Options	PCAP Touch
Touch Drivers	Plug and Play
Operation
Operating Temperature Range	-30~50°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Structure
Housing Material	Galvanized Steel Sheet with Outdoor Anti-rust Painting
Surface Coating	Anti-Reflective/Anti-UV Coating
Mounting	Wall Mounting
Power /Speakers
Power Indicator	Green LED
Power Input	Internal Power Supply, AC 100V~240V
Power Consumption Speakers	85W 2×8W
Order Information
32”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with HDMI input	ITD32CMODIPWxx01
32”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Android Player	ITD32CMODIPWxxEx
32”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Windows Player	ITD32CMODIPWxxJx
