BENEFITES
- Two 55” ultra-bright displays side-by-side deliver double the visual impact for menus and promotions.
- 5000 nits high brightness with optical bonding ensures excellent visibility under direct sunlight.
- IP65-rated all-weather enclosure protects both screens against dust, rain, and humidity.
- Freestanding steel totem design offers a stable, professional presence for drive-thru lanes.
- Independent display zones allow for flexible content control and dynamic screen usage.
- Optional touch screen support (PCAP) enables interactive features like order confirmation or feedback.
- Integrated waterproof fans with filter-free cooling ensure long-term, maintenance-free reliability.
- Ambient light sensor enables smart brightness adjustment to optimize power usage and screen life.
- Built-in compartments for media player or industrial PC simplify integration and cable management.
- Perfect for QSR drive-thrus, fast food chains, beverage kiosks, and outdoor ordering systems.

OVERVIEW

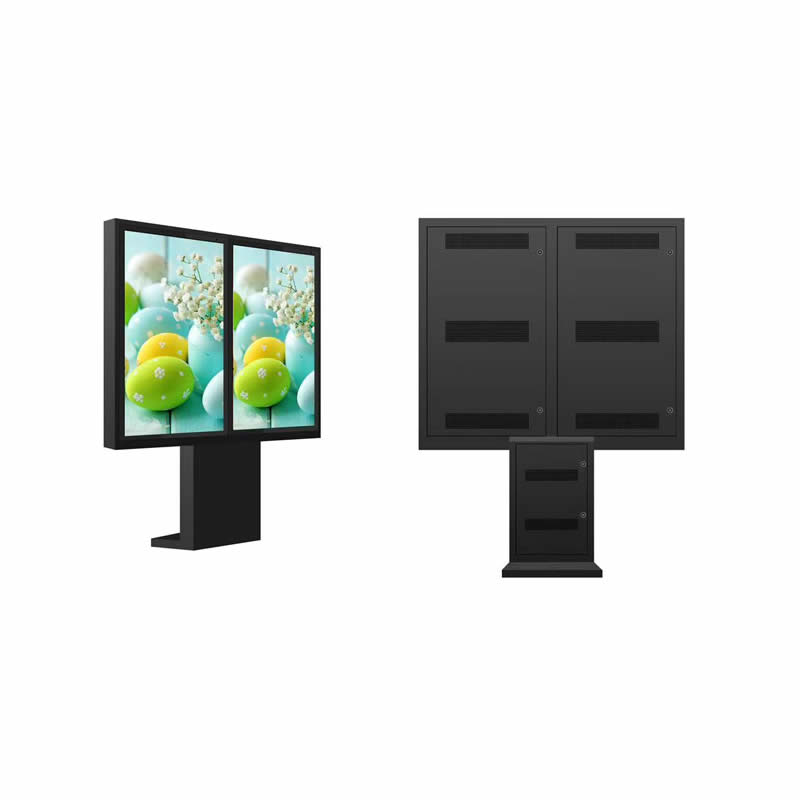

ITD’s Dual 55” Freestanding Outdoor Menu Board is a premium solution designed specifically for QSR drive-thru applications, combining two high-brightness, side-by-side 55” displays within a single robust outdoor enclosure. This configuration provides expanded digital real estate for menu content, promotions, combo deals, and order guidance, enhancing both operational efficiency and customer experience in fast-paced drive-thru environments.
Built with IP65-rated protection, optical bonding, and 5000 nits sunlight-readable displays, it ensures round-the-clock performance in rain, sun, heat, or snow. The freestanding structure is engineered for durability and ease of installation, with independent display control, fan-assisted cooling, and optional PCAP touch functionality. Ideal for QSR chains, coffee shops, and roadside food services aiming to upgrade to a fully digital, dynamic menu system.

Outdoor QSR Drive-thru Menu Board Double Screen
Model Name		ITD55CMODIPLxx-DS
IP Rating		IP65
Single Media Player/Monitor Option
Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS		1 ×HDMI Input 2 ×USB 2.0, 1 ×TF Card Slot
PC Systems Options
ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional)	X86 Based		X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel? Celeron J1900/J4125/J6412		CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional)
Chipset: Rockchip	Chipset: Intel? SOC		Chipset: Intel? SOC
Memory: 2G, max. 8G	Memory: 4GB(Max. 16GB)		Memory: 4GB(Max. 64GB)
Storage: 16G, max. 256G	Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412)		Storage: 1×MSATA, 1×SATA, 1×M.2
1×HDMI Output	1×HDMI Output(optional)		1×HDMI Output(optional)
1×USB 2.0	2×USB		2×USB
1×mini-SD slot(optional)	2×COM(RS232/422/485) (optional)		2×COM(RS232/422/485) (optional)
1×LAN	1×LAN		1×LAN
1×Audio Out(optional)	1×Audio Out, 1×MIC In(optional)		1×Audio Out, 1×MIC In(optional)
Expansion: USB, COM port	Expansion: USB, COM		Expansion: USB, COM
Android, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported		Windows 7/10/11/Embedded/IoT, Linux Supported
LCD Panel
Screen Diagonal (Inch)		55”
Display Active Screen Size (mm)		1209.6(W)×680.4(H)
Pixel Pitch(mm)		0.315×0.315
Aspect Ratio		16:9
Physical Resolution		1920×1080 (3840×2160 optional)
Response Time		8ms
Colors		1.07B
Brightness (cd/m2)		1500 cd/m2(2000~5000cd/m2 optional)
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel Available for Network Version
Touch Options		PCAP Touch
Touch Drivers		Plug and Play
Operation
Operating Temperature Range		-30~50°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Structure
Housing Material		Galvanized Steel Sheet with Outdoor Anti-rust Painting
Surface Coating		Anti-Reflective/Anti-UV Coating
Mounting		Wall Mounting
Power /Speakers
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption Speakers		440W 4×10W
Order Information
55”IP65 Full Outdoor Ultra-Slim Double-Screen Floor Standing LCD Display with HDMI input		ITD55CMODIPLxx01-DS
55”IP65 Full Outdoor Ultra-Slim Double-Screen Floor Standing LCD Display with Android Player		ITD55CMODIPLxxEx-DS
55”IP65 Full Outdoor Ultra-Slim Double-Screen Floor Standing LCD Display with Windows Player		ITD55CMODIPLxxJx-DS
