BENEFITES
- Three 55” high-brightness screens provide expansive space for organized content distribution.
- Segmented screen layout supports dedicated areas for menu, promotions, and real-time updates.
- Max.5000 nits brightness and optical bonding guarantee crisp visibility in any daylight condition.
- Rugged IP65-rated enclosure ensures weatherproof performance across all climates.
- Freestanding modular cabinet design allows quick deployment and ground anchoring.
- Individual screen control enables dynamic content scheduling and screen-specific messaging.
- Waterproof fan cooling with filter-free design offers reliable, maintenance-free operation.
- Optional PCAP touch capability enables interactive ordering or customer engagement features.
- Integrated compartments support media player or IPC installation for system integration.
- Ideal for multi-lane drive-thru setups, high-traffic fast food outlets, and flagship QSR deployments.

OVERVIEW
ITD’s Triple 55” Freestanding Outdoor Menu Board is an advanced, full-scale digital signage solution tailored for multi-lane or high-volume QSR drive-thru environments. Featuring three side-by-side 55” high-brightness displays in a single rugged housing, this system allows restaurants to deliver fully segmented menu presentations, combining static offerings, dynamic promotions, and real-time order instructions all at once.
Designed for maximum visibility, workflow optimization, and customer engagement, the system is built with optical bonding, IP65-rated protection, and independent display management, making it ideal for high-traffic outdoor areas. Its modular, freestanding construction with waterproof cooling and filter-free design ensures consistent 24/7 operation with minimal maintenance. It’s the perfect solution for QSRs looking to modernize their drive-thru experience with impactful, large-scale digital communication.

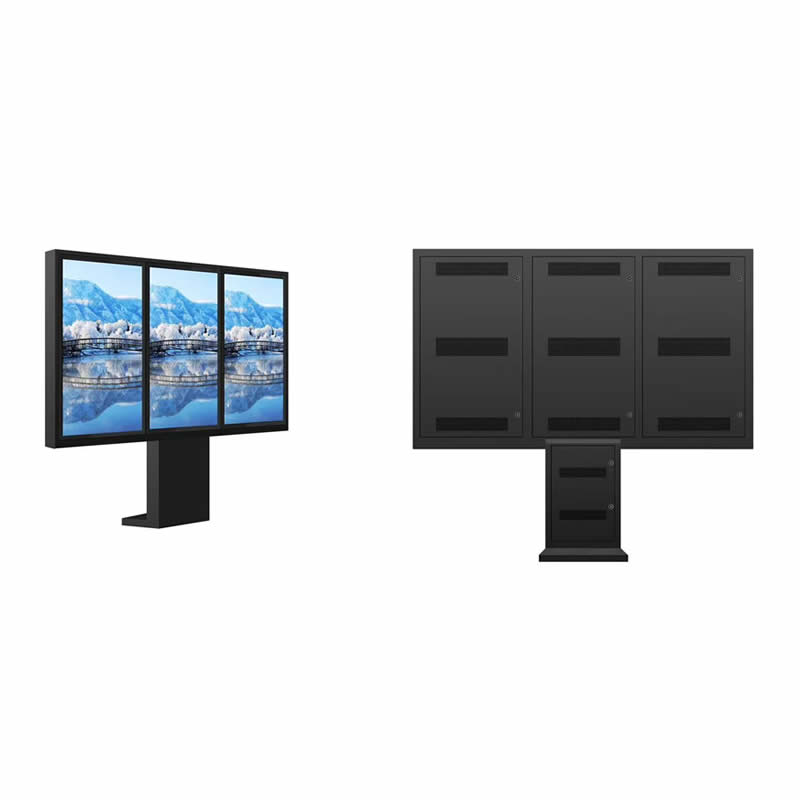

QSR Drive-Thru Outdoor Menu Board Triple Screens
Model Name		ITD55CMODIPLxx-TS
IP Rating		IP65
Single Media Player/Monitor Option
Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS		1 ×HDMI Input 2 ×USB 2.0, 1 ×TF Card Slot
PC Systems Options
ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional)	X86 Based		X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel? Celeron J1900/J4125/J6412		CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional)
Chipset: Rockchip	Chipset: Intel? SOC		Chipset: Intel? SOC
Memory: 2G, max. 8G	Memory: 4GB(Max. 16GB)		Memory: 4GB(Max. 64GB)
Storage: 16G, max. 256G	Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412)		Storage: 1×MSATA, 1×SATA, 1×M.2
1×HDMI Output	1×HDMI Output(optional)		1×HDMI Output(optional)
1×USB 2.0	2×USB		2×USB
1×mini-SD slot(optional)	2×COM(RS232/422/485) (optional)		2×COM(RS232/422/485) (optional)
1×LAN	1×LAN		1×LAN
1×Audio Out(optional)	1×Audio Out, 1×MIC In(optional)		1×Audio Out, 1×MIC In(optional)
Expansion: USB, COM port	Expansion: USB, COM		Expansion: USB, COM
Android, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported		Windows 7/10/11/Embedded/IoT, Linux Supported
LCD Panel
Screen Diagonal (Inch)		55”
Display Active Screen Size (mm)		1209.6(W)×680.4(H)
Pixel Pitch(mm)		0.315×0.315
Aspect Ratio		16:9
Physical Resolution		1920×1080 (3840×2160 optional)
Response Time		8ms
Colors		1.07B
Brightness (cd/m2)		1500 cd/m2(2000~5000cd/m2 optional)
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel Available for Network Version
Touch Options		PCAP Touch
Touch Drivers		Plug and Play
Operation
Operating Temperature Range		-30~50°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Structure
Housing Material		Galvanized Steel Sheet with Outdoor Anti-rust Painting
Surface Coating		Anti-Reflective/Anti-UV Coating
Mounting		Wall Mounting
Power /Speakers
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption Speakers		660W 6×10W
Order Information
55”IP65 Full Outdoor Ultra-Slim Triple-Screen Floor Standing LCD Display with HDMI input		ITD55CMODIPLxx01-TS
55”IP65 Full Outdoor Ultra-Slim Triple-Screen Floor Standing LCD Display with Android Player		ITD55CMODIPLxxEx-TS
55”IP65 Full Outdoor Ultra-Slim Triple-Screen Floor Standing LCD Display with Windows Player		ITD55CMODIPLxxJx-TS
