BENEFITES
- Massive 86” screen size ensures ultra-wide visibility from long distances.
- High-brightness 5000 nits panel keeps content sharp in strong outdoor light.
- Rugged optical bonding enhances screen strength, visibility, and touch performance.
- IP65-rated full-body sealing withstands rain, dust, and urban pollution.

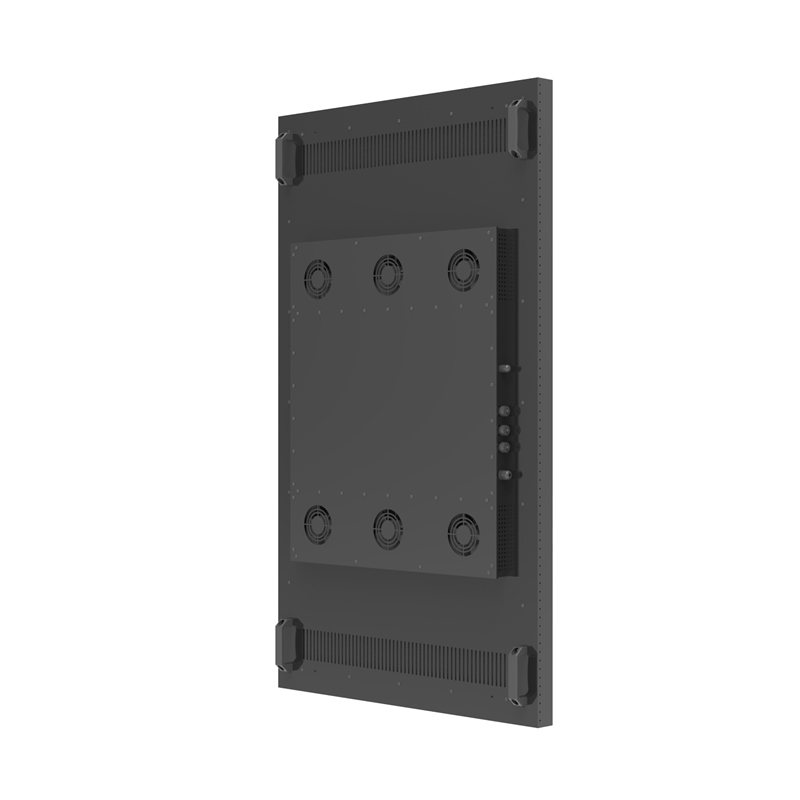

- Built-in waterproof fans provide efficient cooling without compromising weather resistance.
- No filters required for a fully maintenance-free operational life.
- Ambient light sensing enables smart brightness control for energy efficiency.
- Supports wide-temperature operation in extreme outdoor environments.
- Polarized sunglasses-compatible display ensures clear viewing in bright daylight.
- Engineered for smart city, public signage, and high-traffic digital information hubs.

OVERVIEW
ITD 86” Ultra-Thin Landscape Wall-Mount Outdoor Display is a flagship solution built for large-scale, high-visibility outdoor installations where commanding attention and delivering critical content are top priorities. With its massive 86-inch screen, this display is ideal for transportation terminals, outdoor LED replacement, digital command signage, and commercial media walls. It features optical bonding, 5000 nits peak brightness, and a fully sealed IP65 construction, supported by active waterproof cooling for performance stability. Designed for 24/7 public use, it combines reliability, impact, and aesthetics in one comprehensive signage solution.

IP65 Full Outdoor Digital Signage Display
Model Name		ITD86CMODIPWxx
IP Rating		IP65
Single Media Player/Monitor Option
Video Formats Supported: MP4, AVI, DAT, MPG, RM, RMVB, AVC, FLV Audio Formats Supported: MP3, WMA, OGG, AAC, AC, DTS, FLAC, APE Picture Formats Supported: JPEG, BMP, GIF, PNG File Formats Supported: FAT, FAT32, NTFS		1 ×HDMI Input 2 ×USB 2.0, 1 ×TF Card Slot
PC Systems Options
ARM Based RK3568(RK3288/RK3576/RK3588/RK3399 optional)	X86 Based		X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel? Celeron J1900/J4125/J6412		CPU: Intel Core i3/i5/i7 (4th/5th/6th/7th/8th/10th/11th 12th, 13th Gen. optional)
Chipset: Rockchip	Chipset: Intel? SOC		Chipset: Intel? SOC
Memory: 2G, max. 8G	Memory: 4GB(Max. 16GB)		Memory: 4GB(Max. 64GB)
Storage: 16G, max. 256G	Storage: 1×MSATA, 1×SATA, 1×M.2(available for J4125/J6412)		Storage: 1×MSATA, 1×SATA, 1×M.2
1×HDMI Output	1×HDMI Output(optional)		1×HDMI Output(optional)
1×USB 2.0	2×USB		2×USB
1×mini-SD slot(optional)	2×COM(RS232/422/485) (optional)		2×COM(RS232/422/485) (optional)
1×LAN	1×LAN		1×LAN
1×Audio Out(optional)	1×Audio Out, 1×MIC In(optional)		1×Audio Out, 1×MIC In(optional)
Expansion: USB, COM port	Expansion: USB, COM		Expansion: USB, COM
Android, Linux Supported	Windows 7/10/11/Embedded/IoT, Linux Supported		Windows 7/10/11/Embedded/IoT, Linux Supported
LCD Panel
Screen Diagonal (Inch)		86”
Display Active Screen Size (mm)		1895.04(W)×1065.96(H)
Pixel Pitch(mm)		0.4935×0.4935
Aspect Ratio		16:9
Physical Resolution		3840×2160 optional
Response Time		8ms
Colors		1.07B
Brightness (cd/m2)		2500 cd/m2(1000~5000cd/m2 optional)
Contrast Ratio		1200:1
View Angels		89/89/89/89
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel Available for Network Version
Touch Options		PCAP Touch
Touch Drivers		Plug and Play
Operation
Operating Temperature Range		-30~50°C
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Structure
Housing Material		Galvanized Steel Sheet with Outdoor Anti-rust Painting
Surface Coating		Anti-Reflective/Anti-UV Coating
Mounting		Wall Mounting
Power /Speakers
Power Indicator		Green LED
Power Input		Internal Power Supply, AC 100V~240V
Power Consumption Speakers		560W 2×10W
Order Information
86”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with HDMI input		ITD86CMODIPWxx01
86”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Android Player		ITD86CMODIPWxxEx
86”IP65 Full Outdoor Ultra-Slim Wall-Mounted LCD Display with Windows Player		ITD86CMODIPWxxJx
