Features:
Intel Core i3 3.3GHz
System Memory Up to 4GB DDR3
Adjust RS-232/422/485 through BIOS
Nicely design with Rugged steel housing fully enclosed chassis and aluminum front bezel
Ultra-low power consumption
Supports DDC 1/2B for Plug & Play compatibility
Advanced OSD control for picture quality adjustment and sound
Specification
|
System |
|
CPU |
Intel Core i3 |
|
Chipset |
Intel QM67 |
|
Memory |
DDR3 SO-DIMM 667/800MT/s up to 4GB (optional) |
|
Graphic |
Intel GMA3150 Graphics Engine |
|
HDD |
320GB SATA HDD (optional) |
|
Network(LAN) |
Intel 82579 10/100/1000 Mbps Ethernet |
|
Audio |
Audio in; Audio out |
|
SSD |
Optional |
|
I/O Ports |
1 x ESATTA |
|
1 x 10/100 for 100/1000 LAN port |
|
1 x DVI |
|
1 x HDMI |
|
2 x USB 3.0, 7 x USB2.0 |
|
Camera optional |
|
OS Support |
|
Microsoft |
Windows XP, CE, Windows Vista, Windows 7, Windows 8 |
|
Power Supply |
|
Input Voltage |
100~240VAC,50/60Hz |
|
LCD Display |
|
Display Type/Size |
42"TFT LCD |
|
Screen Resolution |
1920*1080 |
|
Brightness |
350cd/m2 |
|
Pixel Pitch |
0.4845 |
|
Viewing Angle |
89/89/89/89 |
|
BackLight Lifetime |
50000hrs |
|
Touch Screen(optional) |
|
Type |
SAW(Surface Acoustic Wave) |
|
Resolution |
4096*4096 |
|
Light Transmission |
>92% |
|
Controller |
USB/RS232 interface |
|
Mechanical |
|
Construction |
IP54 front |
|
Front Panel Protection |
Aluminum Bezel and Steel Enclosure |
|
Certification |
|
Compliance |
CE, FCC, RoHS |
|
Ordering Information |
|
ITD42PPCT3C1-IDS01 |

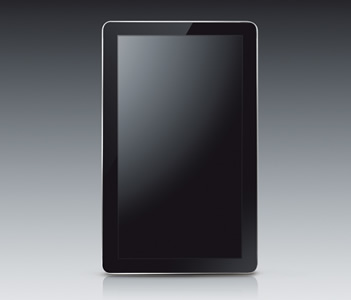

42”True Flat Surface SAW Panel PC with Intel Core i3 |
|
|
|
|
ITD42PPCT3A1-IDS01 |
42”True Flat Surface SAW Panel PC with Intel Atom D2550 | |
