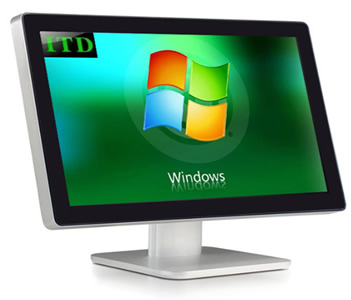

Features:
Bezel-Free, true flat surface, iPad-look style
High contrast color TFT LCD display supports resolution up to 1920 x 1080
Supports DDC 1/2B for Plug & Play compatibility
Advanced OSD control for picture quality adjustment and sound
Rugged aluminum front bezel and steel housing fully enclosed chassis, IP65 front
Specification
|
LCD Panel |
|
Model Name |
ITD156DMT3Q1 |
|
Screen Size (diagonal) |
15.6" |
|
Display Resolution (pixels) |
1920x1080 |
|
Active Display Area (mm) |
344.232(H) x 193.536 (V) |
|
Pixel Pitch(mm) |
0.17925 |
|
Brightness (cd/m 2) |
250 (typ.) |
|
Contrast Ratio |
500:1 (typ.) |
|
Viewing Angles |
65/65/55/55 |
|
Backlight Lifetime |
50000 |
|
Touch Screen |
|
Type |
Surface Acoustic Wave |
|
Touch Connectors |
USB and RS232 |
|
Interface |
|
Signal Connector |
VGA/DVI |
|
Power |
|
Power Source |
DC 2.0 12V AC 100~240 V, Universal, 10% |
|
Power Consumption |
 25W
|
|
Mechanical |
|
Material |
Strong metal housing and brushed aluminum bezel |
|
Mounting |
VESA rugged stand |
|
Certifications |
|
Compliance |
Meet CE,ROHS,FCC,CCC, UL, CB, TCO |
|
Optional |
|
Built-in PC |
Yes | |
