Features:
英特尔赛扬双核1037U 1.8GHz处理器
坚固的全钣金外壳设计，适应各种恶劣使用环境
超低功耗，高性价比
标配2GB DDR3内存，最大支持8GB
4*USB/1*串口（可扩展）
面板颜色：黑色、白色等
Specification
|
System |
|
CPU |
Intel? Celeron 1037U 1.8GHz Dual Core Processor |
|
Chipset |
Intel? NM70 Express Chipset |
|
Memory |
1*SO-DIMM, DDR3 1333MHz Memory, 2GB, Max.8GB |
|
Graphic |
CPU integrated graphics HD and support 1080p |
|
HDD |
320GB HDD |
|
Network(LAN) |
10/100/1000 Mbps Ethernet |
|
Audio |
with Realtek ALC662
Line-In/Line-Out/Speaker out with 3W AMP Circuit/MIC IN |
|
SSD |
Optional |
|
I/O Ports |
1 x HDMI |
|
1 x 10/100 for 100/1000 LAN port |
|
1 x VGA |
|
1 x Lin-in / Lin-out / Mic-in |
|
4 x USB ports |
|
1 x RS-232 |
|
OS Support |
|
Microsoft |
Windows 7/ Windows XP Embedded/ Windows XP Embedded/ Libux/ Win CE |
|
Power Supply |
|
Input Voltage |
100~240VAC,50/60Hz |
|
LCD Display |
|
Display Type/Size |
17"TFT LCD |
|
Screen Resolution |
1280*1024 |
|
Brightness |
250cd/m2 |
|
Pixel Pitch |
0.264 |
|
Viewing Angle |
85/85/80/80 |
|
BackLight Lifetime |
50000hrs |
|
Touch Screen(optional) |
|
Type |
Analog Resistive 5 wires |
|
Resolution |
4096*4096 |
|
Light Transmission |
>90% |
|
Controller |
USB/RS232 interface |
|
Mechanical |
|
Construction |
IP65 / NEMA compliant |
|
Front Panel Protection |
Full Steel Enclosure |
|
Certification |
|
Compliance |
CE,FCC,RoHS |
|
Ordering Information |
|
ITD17PPCT1L1 |

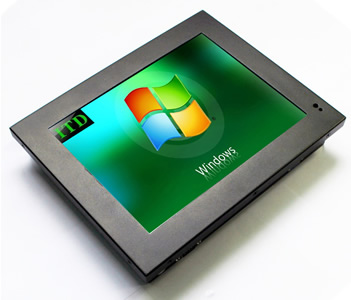

17"Inudstrial panel PC with resistive touch |
|
ITD17PPCN1L1 |
17"Industrial panel PC without touch | |
