Features:
Intel Atom D525 ( 1.8GHz ) CPU On Board
System Memory Up to 4GB DDR3
Adjust RS-232/422/485 through BIOS
6*COM,8*USB
Nicely design with Rugged steel housing fullyenclosed chassis and aluminum front bezel
Ultra-low power consumption
Supports DDC 1/2B for Plug & Play compatibility
Advanced OSD control for picture quality adjustment and sound
Specification
|
System |
|
CPU |
Intel Atom D525 1.8GHz on Board Processor |
|
Chipset |
Intel D525+ICH8M |
|
Memory |
DDR3 SO-DIMM 667/800MT/s up to 4GB (optional) |
|
Graphic |
Intel GMA3150 Graphics Engine |
|
HDD |
250GB SATA HDD (optional) |
|
Network(LAN) |
10/100/1000 Mbps Ethernet |
|
Audio |
Realtek ALC662 |
|
SSD |
Optional |
|
I/O Ports |
1 x PS2 for KB/ Mouse |
|
1 x 10/100 for 100/1000 LAN port |
|
1 x VGA |
|
1 x Lin-in / Lin-out / Mic-in |
|
8 x USB ports (4x external, 4 x internal) |
|
6 x RS-232 (1x external, 5 x internal) for 1 x Parallel Port (SPP/EPP/ECP) |
?
|
OS Support |
|
Microsoft |
Windows XP, CE, Windows Vista, Windows 7 |
?
|
Power Supply |
|
Input Voltage |
100~240VAC,50/60Hz |
?
|
LCD Display |
|
Display Type/Size |
22"TFT LCD |
|
Screen Resolution |
1680*1050 |
|
Brightness |
300cd/m2 |
|
Pixel Pitch |
0.282 |
|
Viewing Angle |
80/80/80/80 |
|
BackLight Lifetime |
50000hrs |
?
|
Touch Screen(optional) |
|
Type |
Analog Resistive 5 wires |
|
Resolution |
4096*4096 |
|
Light Transmission |
>90% |
|
Controller |
USB/RS232 interface |
?
|
Mechanical |
|
Construction |
IP65 / NEMA compliant |
|
Front Panel Protection |
Brushed Aluminum Front Bezel and Steel Enclosure |
?
|
Certification |
|
Compliance |
CE,FCC,RoHS |
?
|
Ordering Information |
|
?ITD22PPCT1A1 |

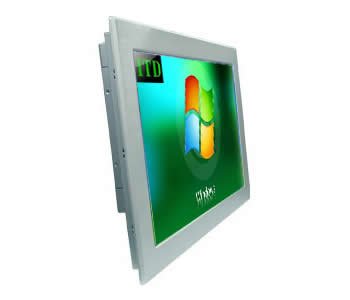

22"Industrial panel PC with touch |
|
?ITD22PPCN1A1 |
22"Industrial panel PC without touch |
? |
