ITD 19inch PCAP Touch Monitor Used in Kiosks

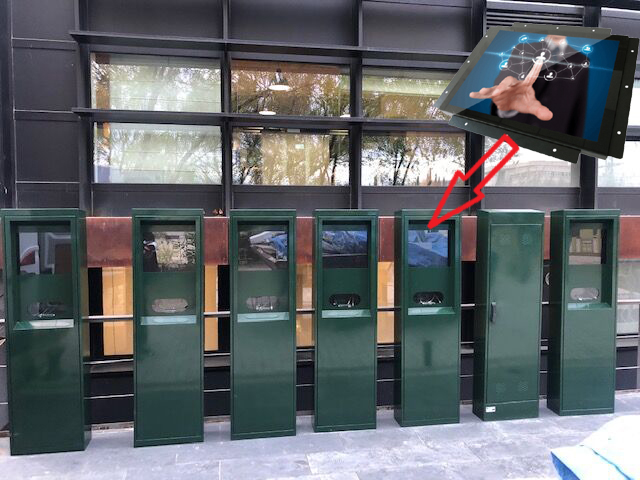

In April, 2019, we proposed our solution of 19 industrial PCAP touch monitor for a customer located in Spain who do indoor & outdoor kiosks. We shipped 7units to them at a very short time for one week and the customer is very satisfied with the reliable quality and fast service. We helped them to release their prototypes to end customers in time.



General Specifications

Model

ITD19OFT5K1

IP

IP65(for front panel only)

Outline Dimensions

Width: 421mm  Height: 345mm  Depth: 47mm

WeightN.W/G.W

5.1Kg / 8.4Kg (Approx.)

Packing Dimension

560(W) 430(H)140(D)mm

Speakers

810W

LCD Type

19Active matrix TFT-LCD

Video Input

VGA and DVI-I, HDMI, Audio

Recommend Resolution

12801024@60Hz,75Hz

OSD controls

Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Power Supply

Type: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 4A Max.

Power Consumption

28W

Mount Interface

1)VESA 75mm and 100mm

2)Mounting Brackets optional

Regular Warranty

1 Year for TFT Panel and 2 Years for Others

Agency Approval

FCCCERoHS Certified



LCD Specification

Active Area(mm)

376.32(H) x301.06(V)

Resolution

12801024

Dot Pitch(mm)

0.2940.294

Nominal Input Voltage VDD

+5V(Typ)

Viewing angle (L/R/T/B)

85/85/80/80

Contrast

1000:1

Luminance(cd/m2)

250

Response Time (Rising/Falling)

3.6s/1.4s

Support Color

16.7M

Screen Scanning

60Hz

Backlight MTBF(hr)

50000h



Touch Screen Specification

Type

Projected Capacitive Touch Screen

Resolution

40964096

Light Transmission

85%5%

Touch Life Cycle

50 millions times

Touch Response time

5ms

Touch System Interface

USB A type

Operating System Support

Plug and Play for Windows 7/8/10, Linux Kernel 3.18.12 or above

Drivers for Windows CE/XP, Android



External AC Power Adapter

Output

12V DC/4A

Input

100-240 VAC, 50-60 Hz

MTBF

50000 hr at 25C



Environment

Operating Temp.

-1060C

Storage Temp.

-2070C

Operating RH:

20%80%

Storage RH:

10%90%



For more products information, technical questions, samples request, please feel free to send inquiry to sales@itd-tech.com.
