New Product Release-ITD 10.1 inch Smart Video Intercom

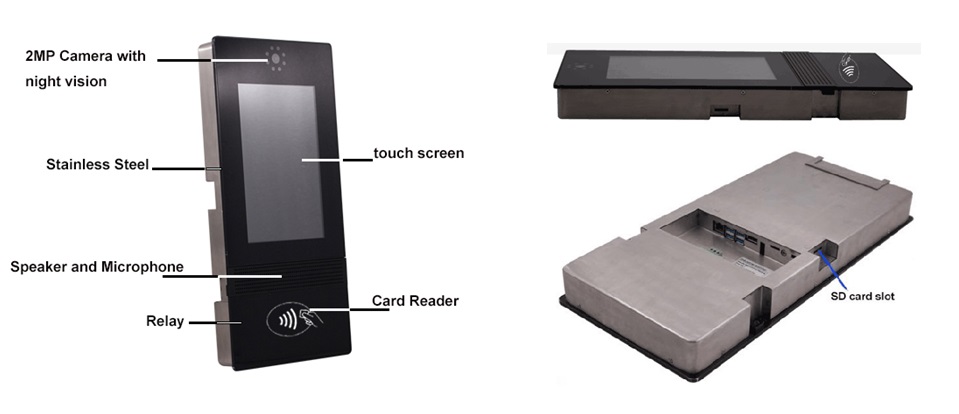

ITD 10.1” smart video intercom system is fully-integrated,multi capacitive touch screen combines high-performance ARM based Octa-Core Processor RK3399 2.0GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a smart reader, camera, relay, speaker and microphone with sleek and flat front surface industrial design. This stylish capacitive multi-touch intercom system has everything it takes for a convenient and versatile home automation. It is perfect for door control, custom software interface for interaction between intercom and smartphone and outdoor IP front protection from water (no ghost touches) and dust makes this device primary choice for entrance control.

FEATURES
●Easy-to-clean, true flat front surface without bezel
●Ten independent touch points with anti-vandalism & scratch
●Eliminates dust and debris build-up at the edge and corners of the display
●Rockchip RK3399/2.0GHz Processor with Android 7.1/Linux Ubuntu 16.04 OS supported
●Ruggedized levels of NEMA 4, IP65 ratings for front panel
●Stainless steel chassis and aluminum front panel construction designed for public and harsh environments
●Flush mount and surface mount supported
●CE, FCC, RoHS Compliance



OPTIONALS
●WIFI, Bluetooth
●Camera with night vision
●PoE
●Card Reader
●Fully sealed waterproof



SPECIFICATION

Panel

Cell Type/Glass Surface

TFT

Size

10.1”

Aspect Ratio

16:10

Active Area

216.81(W) × 135.50(H)mm

Pixel Pitch

0.113 × 0.113mm

Native Resolution

1280 x 800

Colors

16.7M

Brightness

300cd/

Contrast

800:1

Response Time

14ms

Viewing Angle(Typical)

160/160

Light Source

LED Backlight with 30000HoursLifetime



System

CPU: ARM Eight-Core RK3399,Main CPU frequency:2.0GHz;

GPU: Mali-T860 GPU, Supports AFBC(ARM Frame Buffer Compression)

Memory: 2G

Storage: 16G EMMC

OS: Android 7.1 or Linux Ubuntu 16.04

Input / Output

1 × Relay

2 × USB2.0, 2 × USB3.0

1 × HDMI

1 × RJ45 LAN Ethernet 10/100/1000 Mbps (Realtek RTL8211E);

1 × SIM Card Slot/TF Card Slot

1 × DC 12V 2.0

Operating Temperature

-20~70

Storage Temperature

-20~70

Operating Humidity

10%~90% (Non Condensing)

Power Consumption

Below 18W

Outline Dimensions

TBA


 ITD provide custom touch devices solutions worldwide, please contact us for advice.
