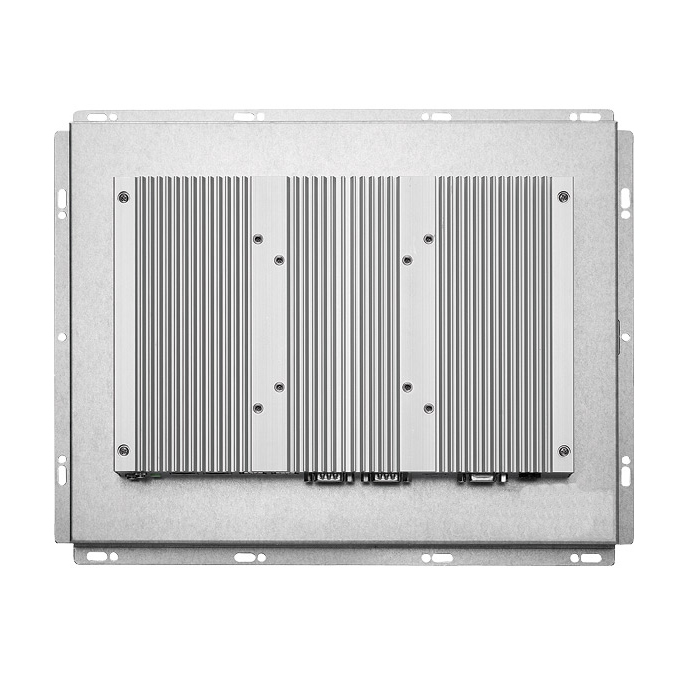

Open FramePanel PC

Model Name

ITD12PPCG1F**

IP Rating

N/A

PC Systems Options

ARM Android Based RK3288(RK3368 optional)

X86 Windows Based

X86 Windows Based

CPU: Quad-Core Cortex-A17 1.8GHz

CPU: Intel Celeron J1900

CPU: Intel Core i3/i5/i7

Chipset: N/A

Chipset: Intel NM10 Express

Chipset: Intel HD Graphics, Support 1080p

Memory: 1G/2G

Memory: 2GB(Max. 8GB)

Memory: 2GB(Max. 8GB)

HDD/SSD: 8G

HDD/SSD:500G/64G

HDD/SSD:500G/64G

1×HDMI

1×VGA, 1×HDMI

1×VGA, 1×HDMI

1×USB 2.0

2×USB 2.0, 2×USB3.0

2×USB 2.0, 2×USB3.0

1×mini-SD slot

1×COM(RS232/422/485)

1×COM(RS232/422/485)

1×LAN

1×LAN

1×LAN

1×Audio Out

1×Audio Out, 1×MIC In

1×Audio Out, 1×MIC In

Expansion: SSD

Expansion: USB, COM, Mini-PCIe

Expansion: USB, COM, Mini-PCIe

LCD Panel

Screen Diagonal (Inch/cm)

12.1”

Display Active Screen Size (mm)

248(H)x186(V)mm

Aspect Ratio

4:3

Physical Resolution

800x600

Maximum Resolution Supported

1920x1080

Colors

16.7M

Brightness (cd/m2)

300nits

Contrast Ratio

500:1

View Angels

80/80/70/70

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’Lifetime

Touch Panel

Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°COptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

17W

Order Information

12.1”Open FramePanel PC with Resistive Touch, J1900

ITD12PPCT1FJ1

12.1”Open Frame Panel PC with PCAP Touch, J1900

ITD12PPCT5FJ1

12.1”Open Frame Panel PC with IR Touch, J1900

ITD12PPCT2FJ1

12.1”Open Frame Panel PC with Tempered Glass, J1900

ITD12PPCG1FJ1

12.1”Open Frame Panel PC with Resistive Touch, i5

ITD12PPCT1FI5

12.1”Open Frame Panel PC with PCAP Touch, i5

ITD12PPCT5FI5

12.1”Open Frame Panel PC with IR Touch, i5

ITD12PPCT2FJ1

12.1”Open Frame Panel PC with Tempered Glass, i5

ITD12PPCG1FI5
