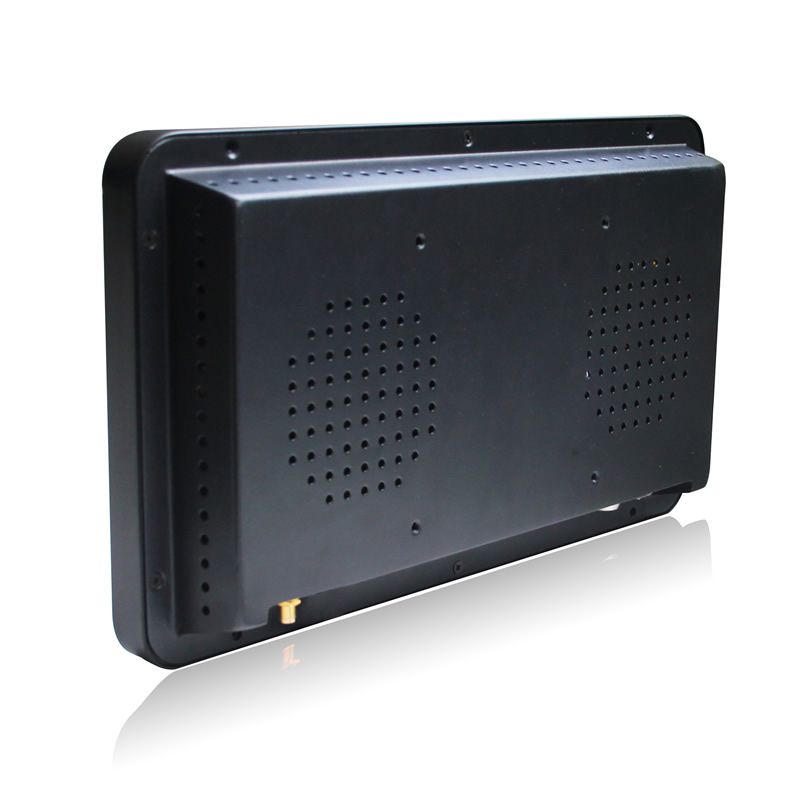

10.1 inch PCAP Touch Panel PC with RFID or NFC Reader

BENEFITES
- Exceptional quality and highly engineered industrial/commercial panel computer
- High Performance Processor, Graphics, Memory and Power
- RFID/NFC reader, web camera, microphone built-in
- Edge to edge design with true flat surface, easy to clean without bezels
- Ten independent touch points, plug and play
- All steel construction designed for industrial or public environments
- Easy-to-install VESA mounting with brackets
- Robust design with aluminum frame NEMA 4/ IP65 front panel
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD Zero-Bezel PCAP touch panel PCs come with built-in card readers like NFC, RFID and IC card. The fanless design decreases downtime and reduces the need for on-site support due to cooling system failure. The multi-touch display allows for configuration and notifications while RFID/NFC reader and camera act as the access control method. The system meets MIL-STD 810F testing procedures and the IP65 compliant front panel is sealed against water and dust intrusion. The built-in RFID/NFC reader works with EM and MIFARE cards and tags. The intuitive touch panel allows for easy operation and the built-in webcam can be used as an intercom through the LAN connection or as a biometric access control system based on facial and voice recognition. The integrated card reader makes the series a complete access control and security system for commercial, residential, industrial, financial, and educational and government institutions.

PCAP Touch Panel PC with RFID/NFC Reader

Model Name

ITD101PPCT5K**-RFID/NFC

IP Rating

IP65 Front Panel

PC Systems Options

ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional)	X86 Based	X86 Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel Celeron J1900/J4125/J6412 2.0GHz	Intel Core i3/i5/i7 (4th~12th Generation optional)
Chipset: Rockchip	Chipset: Intel Bay Trail SoC	Intel SoC Chipset
Memory: Default to 2G, 4G/8G optional	Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412)	2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.)
HDD/SSD: Default to?16G, Max. 128G	Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD	Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD
1×HDMI Output; COM optional	1×VGA, 1×HDMI	1×VGA, 1×HDMI
2×USB, Max. 4×USB, 1×USB OTG (optional)	2×USB 2.0, 2×USB3.0, Max. 6	2×USB 2.0, 2×USB3.0, Max. 6
1×TF Card Slot(Supports 8~128G)	2×COM, Max. 6	2×COM, Max. 6
1×LAN	1×LAN, Dual LAN optional	1×LAN, Dual LAN optional
1×Audio Out	1×Realtek ALC662 , 1×Line-Out/MIC In	1×Realtek ALC662 , 1×Line-Out/MIC In
PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional	GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional
Android 7.1/10/11/12 or Newer Versions	Windows 7/10, Linux Windows 11(available for J4125/J6412)	Windows 7/10, Linux Windows 11(available for 7th gen. or above)

LCD Panel

Screen Diagonal (Inch/cm)

10.1”

Display Active Screen Size (mm)

261.81(H) ×135.50(V)

Aspect Ratio

16:10

Physical Resolution

1920×1200

Maximum Resolution Supported

1920×1080

Colors

16.7M

Brightness (cd/m2)

300nits

Contrast Ratio

800:1

View Angels

89/89/89/89

Backlight/Backlight Lifetime

LED Backlight with 50000 Hours’ Lifetime

Touch Panel

Touch Technology

Projected Capacitive Touch

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi

Touch Life

50,000,000 Times/Click

Surface Hardness

OS Support

Windows, Linux, Android, Mac, Raspberry Pi

Operation

Operating Temperature Range

-10~60°C (-20~70°C Optional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported

Power

Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

15W

Order Information

10.1”PCAP Touch Panel PC with J1900, RFID

ITD101PPCT5KJ1-RFID

10.1” PCAP Touch Panel PC with Android RK3368, RFID

10.1”PCAP Touch Panel PC with Android RK3399, RFID

ITD101PPCT5KE1-RFID

ITD101PPCT5KE2-RFID

10.1”PCAP Touch Panel PC with J1900, NFC

ITD101PPCT5KJ1-NFC

10.1” PCAP Touch Panel PC with Android RK3368, NFC

ITD101PPCG1KE1-NFC

10.1” PCAP Touch Panel PC with Android RK3399 NFC

ITD101PPCG1KE2-NFC
