OVERVIEW

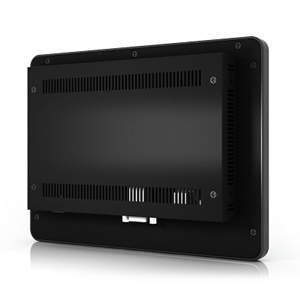

ITD’s flush mount projected capacitive touch displays are engineered specifically for industrial customers who are looking for a rugged and durable touch screen without having to sacrifice on image quality. Featuring a special “FLANGE” around with zero bezel design, the touchscreen monitor can easily be wiped clean, thereby eliminating having to worry about dust and dirt collection, and easily make a true flat front surface of console, which helps extend the use of your display. ITD industrial multi touch displays are accurate, responsive and easy-to-use, enabling migration of existing single touch applications to a gesture-based interface that creates and delivers popular user interactions such as pan, zoom and rotate, which ideal for kiosks, gaming, banking and all kinds of self-service terminals.
|
| |
|
Model Name |
ITD08OFT5Y1 |
|
IP Rating |
IP65 Front Panel |
|
| |
|
Screen Diagonal (Inch) |
8.4” |
|
Display Active Screen Size (cm) |
170.4(H)×127.8(V) |
|
Aspect Ratio |
4:3 |
|
Physical Resolution |
800×600 |
|
Maximum Resolution Supported |
1920×1200 |
|
Colors |
16.7M |
|
Brightness (cd/m2) |
330 |
|
Contrast Ratio |
500:1 |
|
View Angels |
70/70/60/70 |
|
Backlight/Backlight Lifetime |
LED Backlight with 50000Hours’Lifetime |
|
| |
|
Touch Technology |
Projected Capacitive Touch |
|
Touch Drivers |
Windows, Linux, Android, Mac, Raspberry Pi |
|
Touch Life |
50,000,000times/click |
|
Surface Hardness |
7H |
|
| |
|
Video Input |
1 × VGA |
|
1 × DVI-I(Optional) | |
|
1 × HDMI | |
|
Audio |
1 × PC-Audio(Optional) |
|
Touch Connector |
1 × USB |
|
Power Connector |
1 × DC2.0 |
|
| |
|
Operating Temperature Range |
-10~60°C (-20~70°C Optional) |
|
Humidity Range (RH) |
10-90% |
|
24/7/365 Use |
Supported |
|
| |
|
Operating Temperature Range |
-10~60°C (-20~70°C Optional) |
|
Humidity Range (RH) |
10-90% |
|
24/7/365 Use |
Supported |
|
| |
|
Power Indicator |
Green LED |
|
Power Input |
DC 12V |
|
Power Consumption |
|
|
| |
|
Side Mounting Brackets | |
