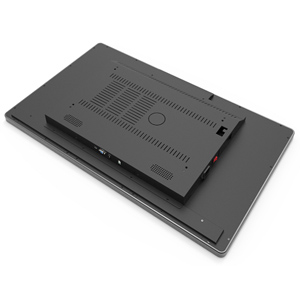

32 inch Flush Mount PCAP Touch Monitor

BENEFITES
- All steel/aluminum construction provides rugged frame for public use environments
- Special “FLANGE” design around easy-to-install to make total true flat front surface
- Ten independent touch points, plug and play
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- Responds to a light touch in activating response
- Easy-to-clean surface without bezels
- Long lasting product cycle for continuity thru all phases of project

OVERVIEW
ITD’s flush mount projected capacitive touch displays are engineered specifically for industrial customers who are looking for a rugged and durable touch screen without having to sacrifice on image quality. Featuring a special “FLANGE” around with zero bezel design, the touchscreen monitor can easily be wiped clean, thereby eliminating having to worry about dust and dirt collection, and easily make a true flat front surface of console, which helps extend the use of your display. ITD industrial multi touch displays are accurate, responsive and easy-to-use, enabling migration of existing single touch applications to a gesture-based interface that creates and delivers popular user interactions such as pan, zoom and rotate, which ideal for kiosks, gaming, banking and all kinds of self-service terminals.

Flush Mount PCAP Touchscreen Monitor
Model Name	ITD32OFT5Y1
IP Rating	IP65 Front Panel
LCD Panel
Screen Diagonal (Inch)	32”
Display Active Screen Size (cm)	698.4(H)×392.85(V)
Aspect Ratio	16:9
Physical Resolution	1920×1080
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m2)	400
Contrast Ratio	1200:1
View Angels	89/89/89/89
Backlight/Backlight Lifetime	LED Backlight with 50000Hours’Lifetime
Touch Panel
Touch Technology	Projected Capacitive Touch
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Touch Life	50,000,000times/click
Surface Hardness	7H
Input / Output
Video Input	1 × VGA
	1 × DVI-I(Optional)
	1 × HDMI
Audio	1 × PC-Audio(Optional)
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	68W
Optional
Side Mounting Brackets
