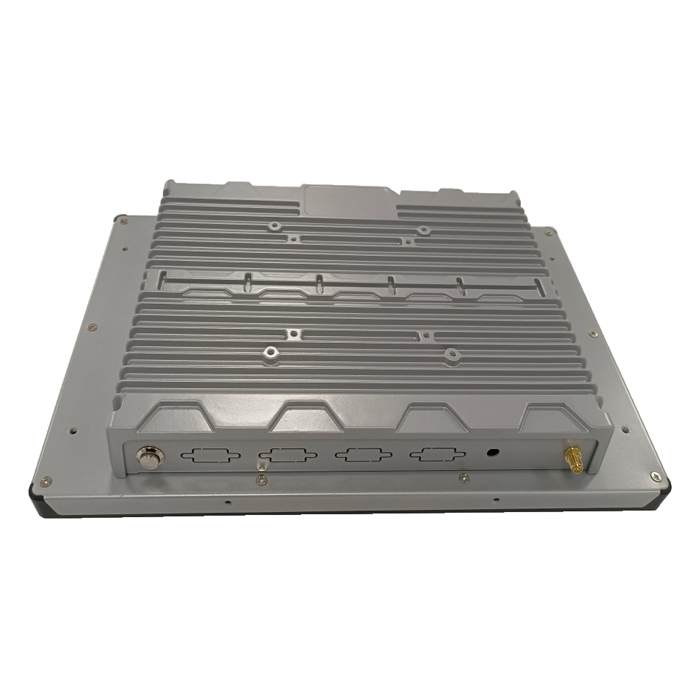

13.3 inch Open Frame Flush Mount PCAP Touch Panel PC
BENEFITES
- Exceptional quality and highly engineered industrial panel computer
- High Performance Processor, Graphics, Memory, and Power
- All steel construction designed for harsh & industrial environments
- Ten independent touch points (with Windows, Android, Linux operating systems)
- Eliminates dust and debris build-up at the edge and corners of the display
- Provides improved power efficiency and reduced consumption
- Responds to a light touch to activate response
- Ruggedized levels of NEMA 4, IP65 ratings for front panel
- Easy flush rear mounting with optional side mounting brackets
- CE, FCC, RoHS Compliance
OVERVIEW
ITD industrial open frame touchscreen panel PCs is a cost-effective and budget-priced all in one industrial computers series that provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all steel enclosures and highly-durable glass front surface provide the durability needed for demanding industrial environments. ITD open frame touchscreen panel PCs cater to those who seek to further customize the appearance of their application and come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fanless design, and scratch-resistant capabilities which are ideal for process manufacturing, discrete manufacturing, industrial automation, process control, building automation, access control, room reservation, room scheduling, and custom HMI applications.
Open Frame Flush Mount PCAP Touch Panel PC
|
| Model Name |
ITD13PPCT5Y** |
| IP Rating |
IP65 Front |
PC Systems Options
|
| ARM Android Based RK3288(RK3399 optional) |
X86 Based |
X86 Based |
| CPU: Quad-Core Cortex-A17 1.8GHz |
CPU: Intel Celeron J1900/J4125/6412 |
CPU: Intel Core i3/i5/i7 4th~11th Generation |
| Chipset: Rockchip |
Chipset: Intel Bay Trail SOC |
Chipset: Intel SoC |
|
Graphic: Intel HD Graphics (By CPU) |
Chipset: Intel HD Graphics (By CPU) |
| Memory: 2G Max. 8GB |
Memory: 4GB, Max. 8GB/16GB; DDR4 SODIMM x1 |
Memory: 4GB, Max. 32GB; DDR4 SODIMM x2 |
| HDD/SSD: 8G Max. 64GB |
Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD |
Storage: 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| 1×HDMI Output |
1×VGA, 1×HDMI |
1×VGA, 1×HDMI |
| 1×USB 2.0 |
2×USB 2.0, 2×USB3.0 |
2×USB 2.0, 2×USB3.0 |
| 1×TF Slot |
2×COM(RS232/422/485) |
1×COM(RS232/422/485) |
| 1×LAN |
1×LAN (Dual LAN optional) |
1×LAN (Dual LAN optional) |
| 1×Audio Output |
1×Audio Out, 1×MIC In |
1×Audio Out, 1×MIC In |
| 1×COM |
Expansion: USB, COM, Mini-PCIe, etc. |
Expansion: USB, COM, Mini-PCIe, etc. |
| OS Support: Android 7.1/8/9/10/11 |
OS Support: Windows 7/10/11, Linux |
OS Support: Windows 7/10/11, Linux |
|
LCD Panel
|
| Screen Diagonal (Inch/cm) |
13.3” |
| Display Active Screen Size (mm) |
293.42 (H)X164.97(V) |
| Aspect Ratio |
16:9 |
| Physical Resolution |
1920*1080 |
| Maximum Resolution Supported |
1920*1080 |
| Colors |
16.7M |
| Brightness (cd/m2) |
250cd/m2 (1000cd/m2 optional) |
| Contrast Ratio |
800:1 |
| View Angels |
80/80/80/80 |
| Backlight/Backlight Lifetime |
LED Backlight with 50000Hours'Lifetime |
Touch Panel
|
| Touch Options |
Projected Capacitive Touch Screen |
| Touch Drivers |
Plug and Play |
Operation
|
| Operating Temperature Range |
-10~60°C (-20~70°C Optional) |
| Humidity Range (RH) |
10-90% |
| 24/7/365 Use |
Supported |
Power
|
| Power Indicator |
Green LED |
| Power Input |
DC 12V (DC24V, DC9-36V, AC100-240V input optional) |
| Power Consumption |
25W |
Order Information
|
| 13.3”Open Frame Flush Mount Panel PC with PCAP Touch, J1900 |
ITD13PPCT5YJ1 |
| 13.3”Open Frame Flush Mount Panel PC with Tempered Glass, J1900 |
ITD13PPCG1YJ1 |
| 13.3”Open Frame Flush Mount Panel PC with PCAP Touch, i3 |
ITD13PPCT5YI3 |
| 13.3”Open Frame Flush Mount Panel PC with Tempered Glass, i3 |
ITD13PPCT5YI3 |
| 13.3”Open Frame Flush Mount Panel PC with PCAP Touch, i5 |
ITD13PPCT5YI5 |
| 13.3”Open Frame Flush Mount Panel PC with Tempered Glass, i5 |
ITD13PPCT5YI5 |
| 13.3”Open Frame Flush Mount Panel PC with PCAP Touch, i7 |
ITD13PPCT5YI7 |
| 13.3”Open Frame Flush Mount Panel PC with Tempered Glass, i7 |
ITD13PPCT5YI7 |
