BENEFITES
- Combination of touchscreens and physical buttons provides a more intuitive and user-friendly interface.
- Dedicated buttons allow quick access to frequently used functions, reducing the time required to perform specific tasks.
- Enhances operational efficiency by combining the speed and versatility of touch inputs with the precision of physical buttons.
- Incorporates safety features such as emergency stop buttons or other critical controls to ensure a prompt and reliable response in urgent situations.
- Designed to withstand harsh industrial conditions, rugged and durable, suitable for deployment in challenging environments.
- Many buttons-integrated offer customization options, allowing users to tailor the interface to meet specific industry requirements.
- The rugged design and durability contribute to reduced maintenance requirements.
- Robust design with aluminum alloy NEMA 4/ IP65 front panel
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Long lasting product cycle for continuity thru all phases of project

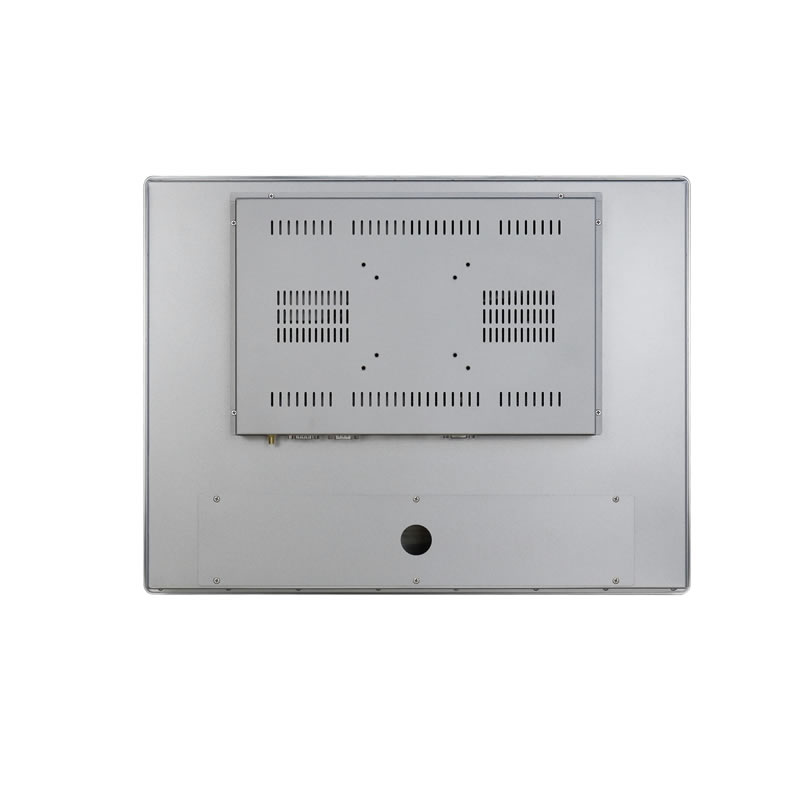

Buttons-Integrated Operation HMI Panel PC |
||||||||||||||||||||||||||||||||||||||
| Model Name | ITD21PPCT*O** | |||||||||||||||||||||||||||||||||||||
| IP Rating | IP65 Front Panel | |||||||||||||||||||||||||||||||||||||
PC Systems Options |
||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||
LCD Panel |
||||||||||||||||||||||||||||||||||||||
| Screen Diagonal (Inch) | 21.5” | |||||||||||||||||||||||||||||||||||||
| Display Active Screen Size (cm) | 476.64(H)×268.11(V) | |||||||||||||||||||||||||||||||||||||
| Aspect Ratio | 16:9 | |||||||||||||||||||||||||||||||||||||
| Physical Resolution | 1920×1080 | |||||||||||||||||||||||||||||||||||||
| Maximum Resolution Supported | 1920×1080 | |||||||||||||||||||||||||||||||||||||
| Colors | 16.7M | |||||||||||||||||||||||||||||||||||||
| Brightness (cd/m2) | 250 (500, 1000, 1500 optional) | |||||||||||||||||||||||||||||||||||||
| Contrast Ratio | 1000:1 | |||||||||||||||||||||||||||||||||||||
| View Angels | 89/89/89/89 | |||||||||||||||||||||||||||||||||||||
| Backlight/Backlight Lifetime | LED Backlight with 50000Hours'Lifetime | |||||||||||||||||||||||||||||||||||||
Touch Panel |
||||||||||||||||||||||||||||||||||||||
| Touch Options | Resistive, PCAP | |||||||||||||||||||||||||||||||||||||
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi | |||||||||||||||||||||||||||||||||||||
Operation |
||||||||||||||||||||||||||||||||||||||
| Operating Temperature Range | -10~60°C (-20~70°C Optional) | |||||||||||||||||||||||||||||||||||||
| Humidity Range (RH) | 10-90% | |||||||||||||||||||||||||||||||||||||
| 24/7/365 Use | Supported | |||||||||||||||||||||||||||||||||||||
Power |
||||||||||||||||||||||||||||||||||||||
| Power Indicator | Green LED | |||||||||||||||||||||||||||||||||||||
| Power Input | DC 12V | |||||||||||||||||||||||||||||||||||||
| Power Consumption | 36.25W | |||||||||||||||||||||||||||||||||||||
Order Information |
||||||||||||||||||||||||||||||||||||||
| 21.5” Integrated Buttons Panel PC with PCAP Touch RK3288 21.5” Integrated Buttons Panel PC with Resistive Touch RK3288 21.5” Integrated Buttons Panel PC with PCAP Touch RK3568 21.5” Integrated Buttons Panel PC with Resistive Touch RK3568 21.5” Integrated Buttons Panel PC with PCAP Touch J1900 21.5” Integrated Buttons Panel PC with Resistive Touch J1900 21.5” Integrated Buttons Panel PC with Resistive Touch J4125 21.5” Integrated Buttons Panel PC with Resistive Touch J4125 21.5” Integrated Buttons Panel PC with Resistive Touch J6412 21.5” Integrated Buttons Panel PC with Resistive Touch J6412 21.5” Integrated Buttons Panel PC with PCAP Touch i3 21.5” Integrated Buttons Panel PC with Resistive Touch i3 21.5” Integrated Buttons Panel PC with PCAP Touch i5 21.5” Integrated Buttons Panel PC with Resistive Touch i5 21.5” Integrated Buttons Panel PC with PCAP Touch i7 21.5” Integrated Buttons Panel PC with Resistive Touch i7 |
ITD21PPCT5OE1 ITD21PPCT1OE1 ITD21PPCT5OE3 ITD21PPCT1OE3 ITD21PPCT5OJ1 ITD21PPCT1OJ1 ITD21PPCT1OJ4 ITD21PPCT1OJ4 ITD21PPCT1OJ6 ITD21PPCT1OJ6 ITD21PPCT5OI3 ITD21PPCT1OI3 ITD21PPCT5OI5 ITD21PPCT1OI5 ITD21PPCT5OI7 ITD21PPCT1OI7 |
|||||||||||||||||||||||||||||||||||||
