OVERVIEW
ITD industrial HMI touch panel PCs provide reliability, durability, and industrial OEMs with vast selection of technologies and solutions simplify PLC, HMI, and SCADA applications. The rugged all aluminum enclosures and highly-durable anti-vandal PCAP glass front surface provide the durability needed for demanding industrial environments. The flat industrial panel mount panel PC is combined with projected capacitive touch panel (PCAP/PCT) makes true flat surface with easy to clean. The Industrial HMI panel PCs come with industrial LCD flat screen sizes, PCAP or resistive touchscreen interface, Intel's comprehensive embedded processors and chipsets, low power consumption, fan-less design, and scratch-resistant capabilities are ideal for Manufacturing Automation, Process Control Systems, Smart Building Automation, Food and Beverage Industry, Oil and Gas Operations, Renewable Energy Systems, Water and Wastewater Treatment, Pharmaceutical Manufacturing, Packaging Industry, Transportation Systems, Healthcare Automation, Mining and Construction, etc.

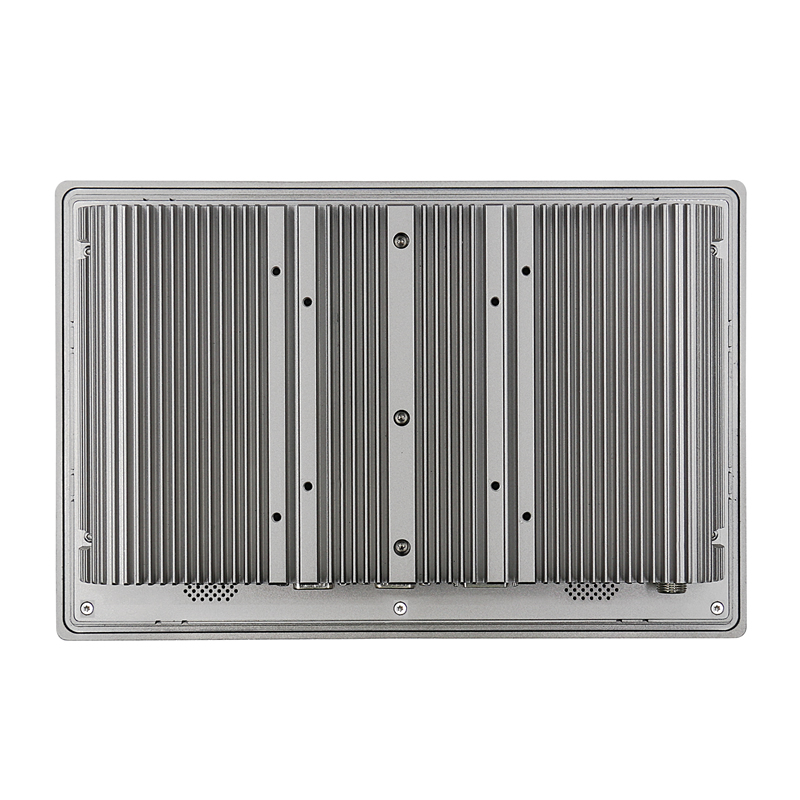

Industrial HMI Touch Panel PC
Model Name	ITD101PPCT5B-xxxx
IP Rating	IP65 Front Panel
PC Systems Options
ARM Quad Core Cortex-A17, 1.8GHz , RK3288 (RK3399/RK3568/RK3588 optional) X86 Based X86 Based CPU: Quad-Core Cortex-A17 1.8GHz CPU: Intel Celeron J1900/J4125/J6412 2.0GHz Intel Core i3/i5/i7 (4th~12th Generation optional) Chipset: Rockchip Chipset: Intel Bay Trail SoC Intel SoC Chipset Memory: Default to 2G, 4G/8G optional Memory: Dual Channel, DDR3 1333/1600MHz Memory; DDR4 SODIMM×1(Intel J4125/J6412) 2×DDR3 1333/1600MHz SO-DIMM Slot; DDR4 SODIMM ×2 (8th~12th Gen.) HDD/SSD: Default to 16G, Max. 128G Storage: 1×MSATA, 1×SATA 1×M.2 (not available for J1900) Default to 64GB SSD Storage: 1×MSATA, 1×SATA 1×M.2 Default to 64GB SSD 1×HDMI Output; COM optional 1×VGA, 1×HDMI 1×VGA, 1×HDMI 2×USB, Max. 4×USB, 1×USB OTG (optional) 2×USB 2.0, 2×USB3.0, Max. 6 2×USB 2.0, 2×USB3.0, Max. 6 1×TF Card Slot(Supports 8~128G) 2×COM, Max. 6 2×COM, Max. 6 1×LAN 1×LAN, Dual LAN optional 1×LAN, Dual LAN optional 1×Audio Out 1×Realtek ALC662 , 1×Line-Out/MIC In 1×Realtek ALC662 , 1×Line-Out/MIC In PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional GPIO, PoE, WiFi, 4G/5G, GPS, Bluetooth, etc. optional Android 7.1/10/11/12 or Newer Versions Windows 7/10, Linux Windows 11(available for J4125/J6412) Windows 7/10, Linux Windows 11(available for 7th gen. or above)
LCD Panel
Screen Diagonal (Inch)	10.1”
Display Active Screen Size (cm)	216.96(H)×135.6(V)
Aspect Ratio	16:10
Physical Resolution	1280×800
Maximum Resolution Supported	1920×1200
Colors	262K
Brightness (cd/m2)	350
Contrast Ratio	800:1
View Angels	85/85/85/85
Backlight/Backlight Lifetime	LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options	Projected Capacitive Touch Panel, 5 Wires Resistive Touch Panel
Touch Drivers	Windows 7/8/10, Linux, Android, Mac
Operation
Operating Temperature Range	-20~60°C
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 9-36V with 4PIN M12 Connector
Power Consumption	20W
Order Information
10.1”Industrial HMI PCAP Touch Panel PC with J4125	ITD101PPCT5B-J4125
10.1”Industrial HMI Resistive Touch Panel PC with J4125	ITD101PPCT1B-J4125
10.1”Industrial HMI PCAP Touch Panel PC with J6412	ITD101PPCT5B-J6412
10.1”Industrial HMI Resistive Touch Panel PC with J6412	ITD101PPCT1B-J6412
10.1”Industrial HMI PCAP Touch Panel PC with i5-8260U	ITD101PPCT5B-i5-8260U
10.1”Industrial HMI Resistive Touch Panel PC with i5-8260U	ITD101PPCT1B- i5-8260U
10.1”Industrial HMI PCAP Touch Panel PC with i7-8565U	ITD101PPCT5B-i7-8565U
10.1”Industrial HMI Resistive Touch Panel PC with i7-8565U	ITD101PPCT1B- i7-8565U
10.1”Industrial HMI PCAP Touch Panel PC with i5-10210U	ITD101PPCT5B-i5-10210U
10.1”Industrial HMI Resistive Touch Panel PC with i5-10210U	ITD101PPCT1B- i5-10210U
10.1”Industrial HMI PCAP Touch Panel PC with i7-10510U	ITD101PPCT5B-i7-10510U
10.1”Industrial HMI Resistive Touch Panel PC with i7-10510U	ITD101PPCT1B- i7-10510U
