Products > Industrial Touchscreen LCD > Panel/Rack Mount LCD Monitor  >  10.1 inch Panel Mount LCD Monitor

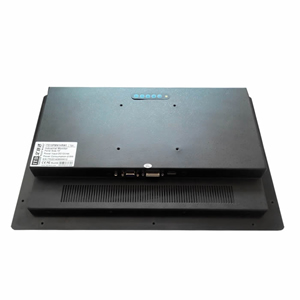

10.1 inch Panel Mount LCD Monitor
BENEFITES
-Exceptional quality and highly engineered industrial monitors
-Optional touchscreens like resistive, IR, SAW, PCAP
-All steel construction designed for harsh and industrialenvironments
-Easy-to-install embedded/panel mounting with clamps
-Robust design with aluminum NEMA 4/ IP65 front panel
-Accuracy in high-use applications
-Long lasting product cycle for continuity thru all phases of project
OVERVIEW
ITD industrial panel mountLCD displays provide reliability, durability, and expected longer product life. The rugged all steel enclosures with robust aluminum alloy front bezel with thickness of 6mm thickness and highly-durable glass front surface provide the durability needed for demanding industrial environments.Industrial panel mountmonitors come with industrial/commercial-grade LCD flat screen sizes, touchscreen interface, industrial analog & digital driver board, low power consumption, and scratch-resistant capabilitiesare idealfor system integrators,kiosks, process control, food processing equipment, machine control, human-machine interface, automation equipment, industrial/factory automation, in-vehicle use and marine applications.




Panel Mount LCD
Monitor

Model Name

ITD101PMN101

IP Rating

N/A


LCD Panel

Screen Diagonal (Inch)

10.1¡±

Display Active Screen Size (cm)

216.96(H)¡Á135.6(V)

Aspect Ratio

16:10

Physical Resolution

1280¡Á800

Maximum Resolution Supported

1920¡Á1200

Colors

262K

Brightness (cd/m2)

350

Contrast Ratio

800:1

View Angels

85/85/85/85

Backlight/Backlight Lifetime

LED Backlight with 50000Hours'Lifetime


Touch Panel



Touch Options

Resistive, IR, PCAP, SAW

Touch Drivers

Windows, Linux, Android, Mac, Raspberry Pi


Input / Output



Video Input

1 ¡Á VGA

1 ¡Á DVI-I

1 ¡Á HDMI

Audio

1 ¡Á PC-Audio

Touch Connector

1 ¡Á USB

Power Connector

1 ¡Á DC2.0


Operation

Operating Temperature Range

-10~60¡ãC (-20~70¡ãCOptional)

Humidity Range (RH)

10-90%

24/7/365 Use

Supported


Power



Power Indicator

Green LED

Power Input

DC 12V

Power Consumption

8.25W


Order Information



10.1¡±Panel Mount LCD Monitor with Resistive Touch

ITD101PMT101

10.1¡±Panel Mount LCD Monitor with IR Touch

ITD101PMT201

10.1¡±Panel Mount LCD Monitor with SAW Touch

ITD101PMT301

10.1¡±Panel Mount LCD Monitor with PCAP Touch

ITD101PMT501

10.1¡±Panel Mount LCD Monitor with Tempered Glass

ITD101PMG101
